Cylinder Bank 2 (Left)

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

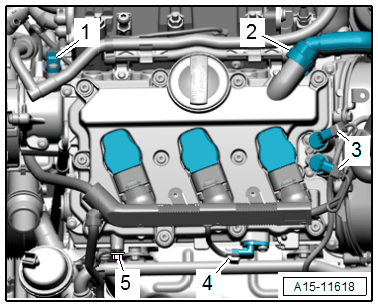

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

-- Remove the GND cable bolt -5-.

-- Disconnect the connectors from the cylinder head:

1 - For Camshaft Position Sensor 2 -G163-

3 - For Camshaft Adjustment Valve 2 -N208- /Exhaust Camshaft Adjustment Valve 2 -N319-

4 - For Camshaft Position Sensor 4 -G301-

-- Move the electrical wiring harness to the side.

NOTE:

Ignore -item 2-.

Continued for Both Sides

Courtesy of AUDI OF AMERICA, LLC

-- Remove the intake manifold lower section. Refer to INTAKE MANIFOLD LOWER SECTION WITH FUEL RAIL, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the corresponding camshaft adjuster valves.
