Cylinder Head Bank 2 (Left), Removing
Special tools and workshop equipment required
- Commercially available XZN M12 socket, minimum 75 mm long
- The engine is installed.
During installation, all cable ties must be installed at the same location.
-- Remove the MPI injection fuel line. Refer to FUEL LINE, REMOVING AND INSTALLING .
-- Remove the left camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .
-- Remove the left front coolant pipe. Refer to FRONT LEFT COOLANT PIPE, REMOVING AND INSTALLING .

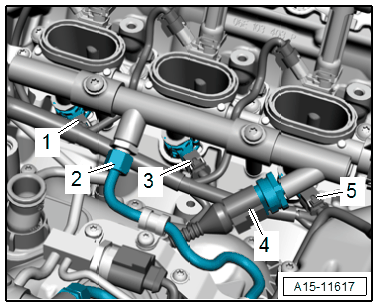

-- Disconnect electrical connectors -1 and 3- on fuel injectors.
-- Disconnect the connector -4- from the Fuel Pressure Sensor -G247-.
The fuel system is under pressure.
Risk of injury from fuel spraying out.
- Wear protective eyewear.
- Wear safety gloves.
- Reduce the pressure: Place clean cloths around the connection point and carefully open the connection point.
-- Remove the union nut -2-.
The connector -5- is disconnected later.
-- Remove the bolts -1 and 2- and the chain tensioner from the cylinder head.
The :T40071 remains inserted.
-- Free up the wires.

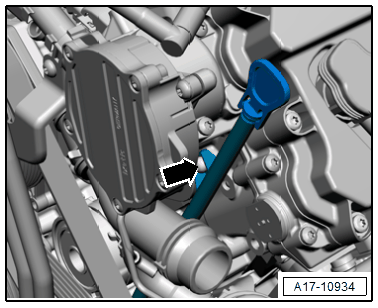

-- Remove the bolt -arrow- and the oil dipstick tube.
-- Remove the bolts -arrows- on the rear of the cylinder head.
-- Loosen the cylinder head bolts in the sequence -1 to 8-.
-- Remove the bolts the cylinder head and the cylinder "4" fuel injector connector.
-- Place the cylinder head on a soft surface (foam).
