Cylinder Head Bank 1 (Right), Removing And Installing: Procedure
- The engine is installed.
During installation, all cable ties must be installed at the same location.
-- Remove the front right coolant pipe. Refer to RIGHT FRONT COOLANT PIPE, REMOVING AND INSTALLING .
-- Remove the upper coolant pipe. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .
The fuel system is under pressure.
Risk of injury from fuel spraying out.
- Wear protective eyewear.
- Wear safety gloves.
- Reduce the pressure: Place clean cloths around the connection point and carefully open the connection point.
-- Remove the fuel hose -1-. Refer to CONNECTOR COUPLINGS .
-- Always seal the open lines and connections with clean plugs from the :VAS6122 .
-- Remove the right camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

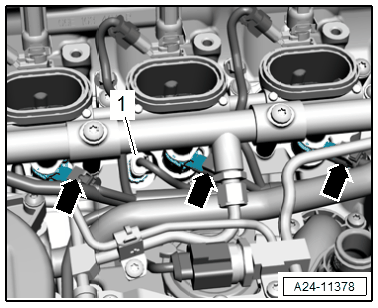

-- Disconnect electrical connectors -arrows- on fuel injectors.
-- Disconnect the connector -1- on the Engine Temperature Control Sensor -G694-.
-- Remove the bolts -1 and 2- and the chain tensioner from the cylinder head.
The :T40071 remains inserted.

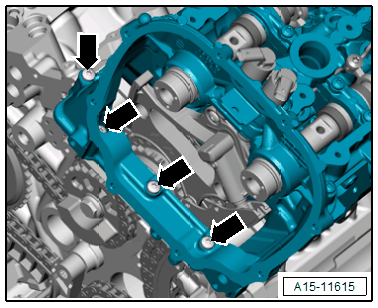

-- Remove the bolts -arrows- and the bracket -1-.
-- Remove the bolts -arrows- on the rear of the cylinder head.
-- Remove the bolts, remove the cylinder head and place it on a soft surface (foam).
