Cylinder Bank 2 (left)
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The engine could be damaged.
- The camshaft adjuster must only be installed according to the following work steps.
- Install the camshaft adjuster according to the marks applied during removal.

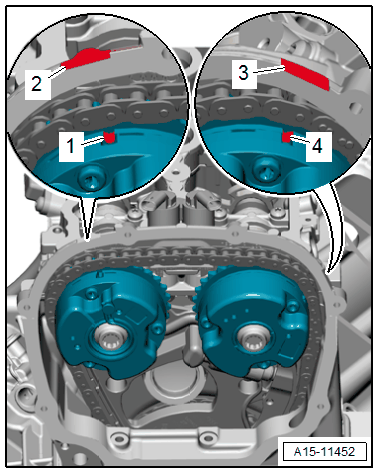

- The groove -1 and/or 4- in the camshaft adjuster must align with the adjustment window -2- and/or -3-.
-- Install the camshaft adjuster according to the marks applied during removal.
-- Position the camshaft timing chain on the drive chain sprocket and the camshaft adjuster and loosely install the bolts -1 and 2-.
- Both camshaft adjusters must be able to still be rotated on camshaft and must not tip.

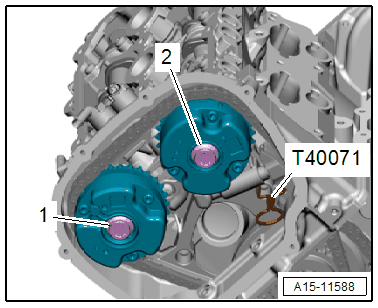

-- Remove the :T40071 .

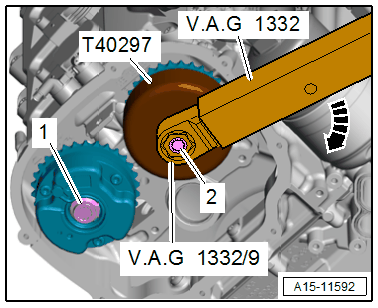

-- Position the :T40297 on the camshaft adjuster of the intake camshaft.
-- Position the :VAG1332 with the :VAG1332/9 on the :T40297 .
-- Have a second technician pre-tension the camshaft adjuster in direction of -arrow- to 40 Nm.
-- Tighten the bolts as follows while the camshaft adjuster is still held under tension.
| Step | Bolt | Tightening Specification |
|---|---|---|
| 1. | -1- | to the camshaft to 60 Nm |
| 1. | -2- | to the camshaft to 60 Nm |
-- Remove the :T40297 .
-- Remove the :T40133/2 -arrows-.
