Cylinder Bank 1 (Right)

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The engine could be damaged.

The camshaft adjuster must only be installed according to the following work steps.

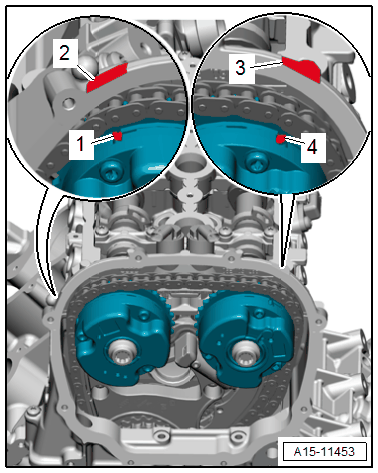

Install the camshaft adjuster according to the marks applied during removal.
the groove -1 and/or 4- in the camshaft adjuster must align with the adjustment window -2 and/or 3-.

-- Install the camshaft adjuster according to the marks applied during removal.

Courtesy of AUDI OF AMERICA, LLC

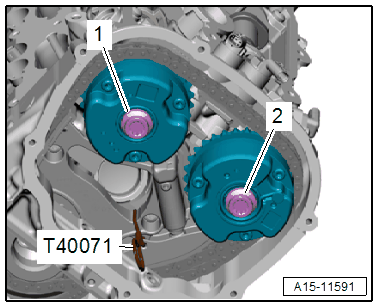

-- Position the camshaft timing chain on the drive chain sprocket and the camshaft adjuster and loosely install the bolts -1 and 2-.

Both camshaft adjusters must be able to still be rotated on camshaft and must not tip.

-- Remove the :T40071 .

Courtesy of AUDI OF AMERICA, LLC

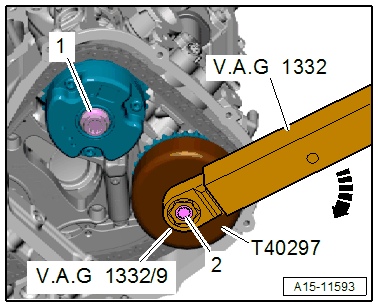

-- Position the :T40297 on the camshaft adjuster of the exhaust camshaft.

-- Position the :VAG1332 with the :VAG1332/9 on the :T40297 .

-- Have a second technician pre-tension the camshaft adjuster in direction of -arrow- to 40 Nm.

-- Tighten the bolts as follows while the camshaft adjuster is still held under tension.

Step	Bolt	Tightening Specification
1.	-1-	to the camshaft to 60 Nm
1.	-2-	to the camshaft to 60 Nm

-- Remove the :T40297 .

-- Remove the :T40133/1 -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the camshaft adjuster bolts on the right cylinder head as follows:

Step	Bolt	Tightening Specification
2.	-1-	Final tightening specification at the camshaft. Refer to OVERVIEW - CAMSHAFT TIMING CHAINS .
2.	-2-	Final tightening specification at the camshaft. Refer to OVERVIEW - CAMSHAFT TIMING CHAINS .

Cylinder Bank 2 (left)

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the camshaft adjuster bolts on the left cylinder head as follows:

Step	Bolt	Tightening Specification
2.	-1-	Final tightening specification at the camshaft. Refer to OVERVIEW - CAMSHAFT TIMING CHAINS .
2.	-2-	Final tightening specification at the camshaft. Refer to OVERVIEW - CAMSHAFT TIMING CHAINS .

-- Remove the :T40069 .

Courtesy of AUDI OF AMERICA, LLC

-- Using the :T40058 and a wrench, turn the crankshaft two turns in the direction of engine rotation -arrow- until it is back at "TDC".

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If it is accidentally rotated beyond "TDC", rotate it back approximately 30° and set it to "TDC" again.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the :T40133/1 into the cylinder head and tighten -arrows-.

Tightening specification: 25 Nm.

Cylinder Bank 2 (left)

Courtesy of AUDI OF AMERICA, LLC

-- Insert the :T40133/2 into the cylinder head and tighten -arrows-.

Tightening specification: 25 Nm.

Continuation for Both Cylinder Banks

Courtesy of AUDI OF AMERICA, LLC

-- Install the :T40069 directly in the hole.

The :T40069 must engage in the locating hole in the crankshaft -1-, otherwise repeat the adjustment.

-- Remove the camshaft locating pins on both cylinder heads.

-- Remove the crankshaft holder.

Installation is performed in reverse order of removal, while noting the following:

-- Install the cylinder head cover. Refer to CYLINDER HEAD COVER, REMOVING AND INSTALLING .

-- Install the left and right timing chain covers. Refer to LEFT TIMING CHAIN COVER, REMOVING AND INSTALLING .
