Tightening Specifications

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the bolts that were tightened with an additional turn.

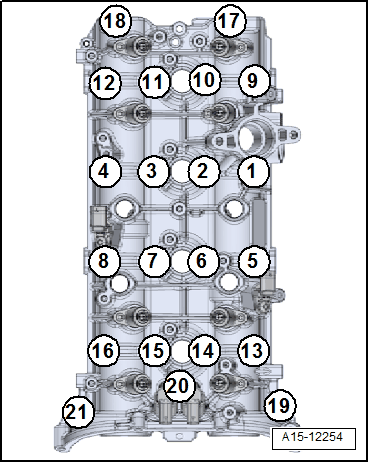

-- Tighten the bolts in steps in the sequence shown:

Step	Bolts	Tightening Specification/Additional Turn
1.	-1 to 21-	Install all the way in by hand. The camshaft housing contact surface must lay entirely on top of the cylinder head
2.	-1 to 21-	8 Nm
3.	-1 to 21-	Tighten an additional 90°
