Camshafts, Removing, Used Camshafts, Reinstalling On Cylinder Bank 2 (Left): Installing

Courtesy of AUDI OF AMERICA, LLC

• Secure crankshaft in "TDC" position using :3242  .

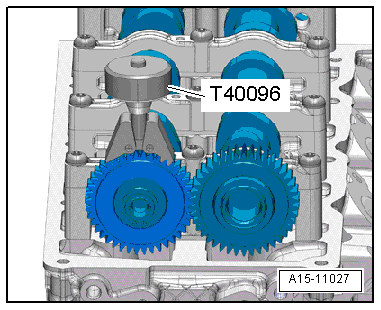

-- Mount the :T40096  onto the teeth of the intake camshaft so that one arm of the clamping tool engages in one sprocket half.

• The wider arm must engage into the wider half of the sprocket.

-- Tension the tensioning tool with the thumb wheel until the tooth faces align.

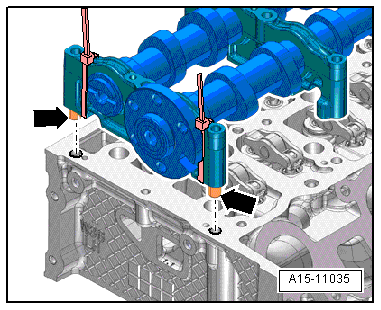

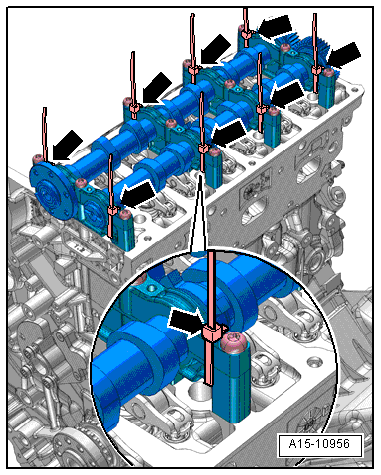

-- Lay the camshafts and the camshaft bearings that are tied up with cable ties -arrows- onto the cylinder head.

Courtesy of AUDI OF AMERICA, LLC

-- Check the camshaft "TDC" position:

Courtesy of AUDI OF AMERICA, LLC

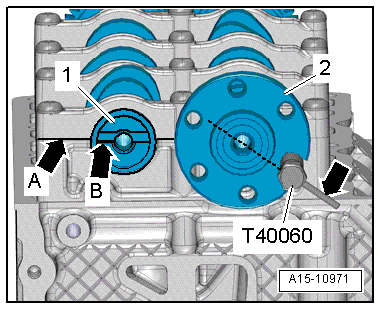

• The intake camshaft -2- must be able to be stopped with the :T40060  .
• The bolt -arrow- in the :T40060  must be perpendicular to the center axis of the camshaft.
• The exhaust camshaft -1- must be positioned so that the groove -arrow A- runs parallel above the joint -arrow B- between the thrust bearing and the bearing cap.

-- Check the installed location of the alignment sleeves:

Courtesy of AUDI OF AMERICA, LLC

• Both alignment sleeves -arrows- must be inserted into the openings on the thrust bearing "IV".
• The alignment sleeves must engage in the openings in the cylinder head.

-- Install the bolts -1 to 12- in the bearing cap.

Courtesy of AUDI OF AMERICA, LLC

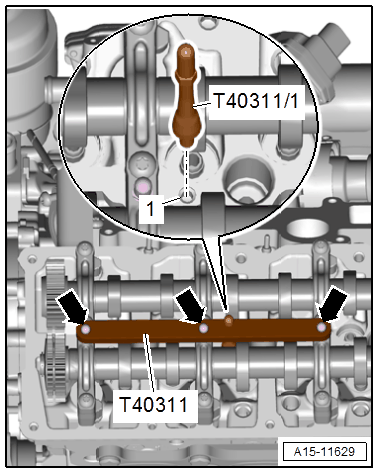

-- Install the :T40311/1  in the threaded hole -1- at the level of the 5-cylinder, as shown in the illustration.

Courtesy of AUDI OF AMERICA, LLC

-- Place the :T40311  on the mounting bracket for the tensioning claw -arrows-, as shown in the illustration.

-- Tighten the bearing cap bolts. .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the :T40311  and the :T40311/1  .

-- Check the camshaft "TDC" position:

Courtesy of AUDI OF AMERICA, LLC

• The intake camshaft -2- must be able to be stopped with the :T40060  .
• The bolt -arrow- in the :T40060  must be perpendicular to the center axis of the camshaft.
• The exhaust camshaft -1- must be positioned so that the groove -arrow A- runs parallel above the joint -arrow B- between the thrust bearing and the bearing cap.

Install in reverse order of removal. Note the following:

-- Remove the :T40096  .

-- Install the camshaft timing chains. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
