Overview - Accessory Ribbed Belt, Ribbed Belt Drive: Notes

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

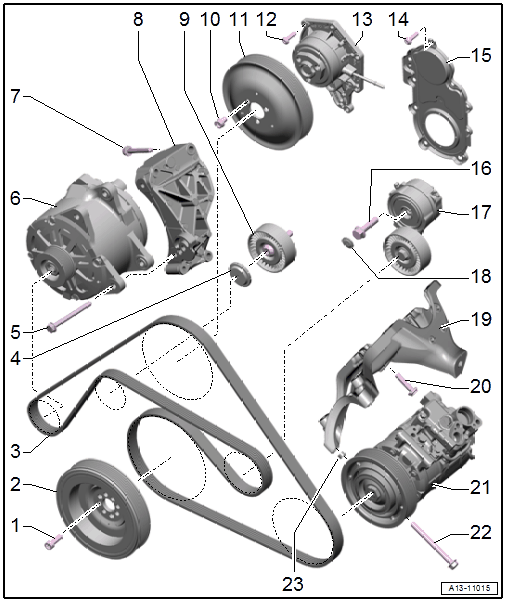

Fig 1: Exploded View Of Accessory Ribbed Belt, Ribbed Belt Drive
GWWA13-11015Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 20 Nm + 90°
    • Replace after removing
  2. Vibration Damper
  3. Ribbed Belt
  4. Cover
    • For the idler roller
    • Depending on version
  5. Bolt
  6. Generator
  7. Bolt
    • 20 Nm
  8. Bracket
    • For the generator
  9. Idler Roller
    • 40 Nm
    • For the ribbed belt
  10. Bolt
  11. Ribbed Belt Pulley
  12. Bolt
  13. Coolant Pump
  14. Bolt
  15. Sealing Flange, Belt Pulley Side
  16. Bolt
    • 40 Nm
  17. Tensioner
  18. Cover
    • For the tensioner
  19. Left Engine Support
    • With Air Conditioning (A/C) compressor bracket
  20. Bolt
  21. A/C Compressor
    • Do not unfasten/separate refrigerant lines
    • Removing and installing. Refer to the appropriate service information A/C COMPRESSOR .
  22. Bolt
    • Tightening Specifications. Refer to the appropriate service information A/C COMPRESSOR .
  23. Alignment Sleeve
    • Quantity: 2
