Turbocharger Recirculating Valve -N249-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow all the rules of cleanliness. Refer to CLEAN WORKING CONDITIONS .
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
WARNING:
Fire hazards and risk of damage for a faulty engine cover.
- The engine cover must be always be installed before the hood is closed.
- The engine may neither be started nor driven without an engine cover.

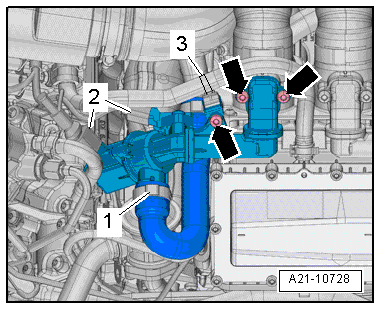

-- Disconnect the connectors -2-.
-- Free up the air guide hose -3-.
-- Remove the bolts -arrows- and then free up the Turbocharger Recirculation Valve -N249- with the air guide.
NOTE:
Ignore item -1-.

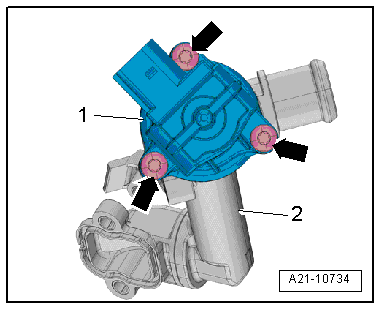

-- Remove the bolts -arrows- and then remove the Turbocharger Recirculation Valve -N249- -1- from the air guide -2-.
