Supercharger Belt Pulley, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Remove the supercharger ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING, SUPERCHARGER RIBBED BELT .

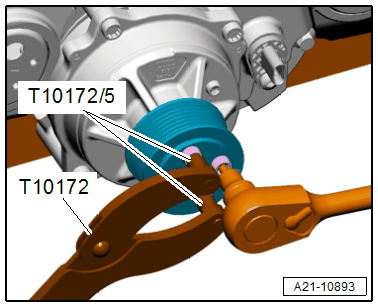

-- Loosen the two belt pulley bolts a turn, while doing so counter hold on the other two bolts with the :T10172A and :T10172/5 .
-- Place the counterholder on the loosened bolts and remove the two other bolts.
-- Remove the remaining bolts and the belt pulley.
