Input Shaft Seal, Replacing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Bearing/Bushing Installer - Multiple Use :VW295
Bearing Installer - Wheel Bearing :3144
Plate :T40285

Courtesy of AUDI OF AMERICA, LLC

-- Remove the operating head. Refer to OPERATING HEAD, REMOVING AND INSTALLING .

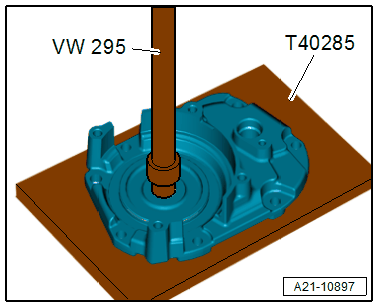

-- Place the operating head with the front side upward on the Plate:T40285 as shown in the illustration.

-- Drive out the seal from the operating head using the :VW295 .

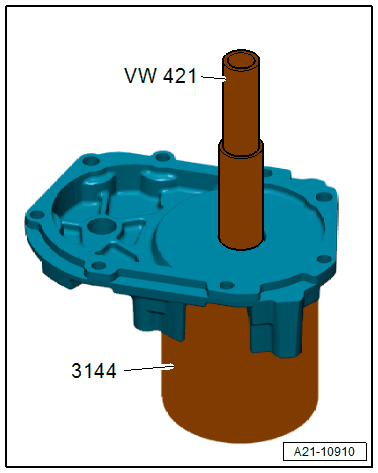

-- Place the operating head with the front side downward on the workbench.

-- Drive in the gasket with the :3144 .

Installation position: the open side of the gasket points to the tool.

Courtesy of AUDI OF AMERICA, LLC

-- Install the operating head. Refer to OPERATING HEAD, REMOVING AND INSTALLING .
