Right Charge Air Cooler
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Throttle Valve Control Module -J338-. Refer to Throttle Valve Control Module -J338-, REMOVING AND INSTALLING .
-- Remove the Charge Air Pressure Sensor -G31-. Refer to CHARGE AIR PRESSURE SENSOR - G31- / -G447-, REMOVING AND INSTALLING .
Continued for Both Sides
-- Remove the bolts -1 and 2- and the coolant pipes from the supercharger.
-- Remove the bolts on the left -1 and 2- and right -3 and 4- charge air coolers.

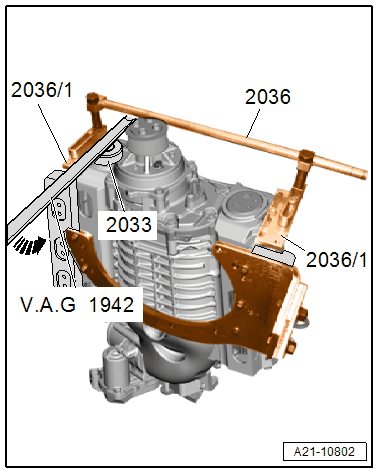

-- Attach the :2036 to the supercharger with :2036/1 as illustrated.
-- Position the :2033 on the front of the charge air cooler.
-- Slowly remove the charge air cooler with even pressure from the supercharger housing using the :VAG1942 .
