Turbocharger, Removing And Installing, Vehicles With Two Turbochargers: Removing

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

When working on the whole exhaust system:

  • Follow the safety precautions when working on the exhaust system..
CAUTION:

If mechanical damage (such as a destroyed compression wheel) is found on the turbocharger, just replacing the turbocharger is not enough. To avoid damage later, perform the following steps:

  • Check the air filter housing, air filter element and air guide hoses for contamination.
  • Possible cause for mechanical fault in the turbocharger can be foreign objects from the exhaust manifold.
  • Check the entire charge air circuit and charge air cooler for foreign objects.
  • If there are foreign objects in the charge air system, clean the charge air circuit and replace the charge air cooler if necessary.
NOTE:

Follow all the rules of cleanliness..

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the plenum chamber bulkhead. Refer to BULKHEAD .

CAUTION:

Danger of causing damage to electronic components.

  • Observe the steps for disconnecting the battery.

-- Disconnect the ground cable from the battery terminal. Refer to BATTERY .

-- Release the retainer -arrow A- and open the cover -arrow B-.

GWWA10-11368Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

GWWA10-11407Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2, 3 and 4- move the wire to the side.

NOTE:

Ignore the -arrows-.

Vehicles with an SCR system:

GWWA10-11823Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2 and 3- and free up the wire.

-- Remove the connector -1- from the bracket and disconnect it.

NOTE:

Ignore the -arrows-.

Continuation for All Vehicles:

GWWA19-11246Courtesy of AUDI OF AMERICA, LLC
NOTE:

Use a cloth to catch any leaking coolant.

-- Loosen hose clamps -2, and 3- and remove the Coolant Hose -1, and 4- from the Heater Core.

NOTE:

Ignore Hose Clamps - Up To 25mm :3094  .

-- Disconnect electrical connectors -1 through 4- and move the wiring harness to the side.

GWWA21-10665Courtesy of AUDI OF AMERICA, LLC
GWWA21-10666Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Danger of causing damage to Turbocharger shaft.

  • The compressor blade shaft extends over the contour of the turbocharger housing.
  • Do not damage the compressor blade when removing the connecting pipe.

-- Remove the bolts -arrows- and the connecting pipe -1-.

-- Remove the front exhaust pipe.

-- Remove the Exhaust Gas Temperature Sensor 3 -G495- -item 1- and pressure pipe -3- for the Differential Pressure Sensor -G505-.

GWWA26-11154Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -item 2-.

-- Remove from the bracket and disconnect connector -1- and if equipped -4-.

GWWA26-11152Courtesy of AUDI OF AMERICA, LLC

-- If equipped, unbolt and remove the Exhaust Gas Temperature Sensor 2 -G448- -item 3-.

NOTE:

Ignore -item 2-.

Vehicles with an SCR system:

GWWA23-10825Courtesy of AUDI OF AMERICA, LLC

-- Remove the NOx Sensor -G295- -arrow- free up and set to the left side.

Continuation for All Vehicles:

GWWA26-11167Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and push the catalytic converter to the rear, while doing this on vehicles with a selective catalytic reduction system pay attention to the catalytic converter wires.

-- Remove the bolts -arrows- and remove the heat shield -1-.

GWWA15-11202Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

GWWA21-10654Courtesy of AUDI OF AMERICA, LLC

-- Remove vacuum hose -1- and press the Vacuum Line to the side.

-- Remove the banjo bolts -arrow-, and remove the Oil supply line -1-.

GWWA21-10674Courtesy of AUDI OF AMERICA, LLC

Remove bolts -3, and 4- and Union nut -1, and 2- for the coolant supply line.

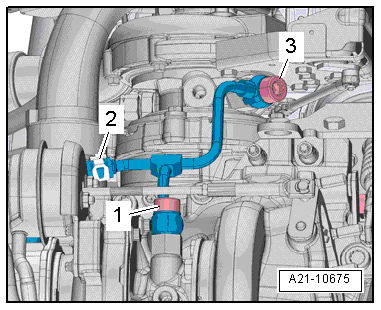

GWWA21-10672Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp -2- and remove the coolant hose.

GWWA21-10675Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -items 1 and 3-.

-- Remove vacuum hose -2- and free up the Vacuum Line -1- from the flange.

GWWA21-10676Courtesy of AUDI OF AMERICA, LLC

-- Press the release buttons and remove the crankcase ventilation hose -1-.

GWWA15-11203Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

GWWA21-10653Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -item 2-.

-- Remove the bolts -arrows-.

GWWA21-10656Courtesy of AUDI OF AMERICA, LLC

-- Remove the right air guide pipe -2- along with the intermediate pipe -1- from the turbocharger assembly and set aside.

NOTE:

Ignore -item 3-.

-- Loosen bracket -1- and remove Bypass valve -2-.

GWWA21-10657Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and move tab to the side.

GWWA26-11155Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -1-.

GWWA21-10598Courtesy of AUDI OF AMERICA, LLC

-- Loosen the right and left bolts -3- at the bracket -2- for the turbocharger.

-- Loosen the left and right brackets -arrow- and slide it onto the exhaust manifold.

GWWA26-11168Courtesy of AUDI OF AMERICA, LLC
GWWA21-10677Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Danger of causing damage to the Oil Return Pipe.

  • Do not bend the Oil Return Pipe.

-- Remove the screws -1- from the Oil Return Pipe.

NOTE:

Ignore -item 2-.

-- Remove the screws -2- on the EGR pipe.

GWWA26-11176Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -item 1-.

-- Remove the bolts -1, 2, and 3-.

GWWA21-10678Courtesy of AUDI OF AMERICA, LLC
GWWA21-10600Courtesy of AUDI OF AMERICA, LLC
WARNING:

Loose engine support bridge components could cause an accident.

  • Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-.
CAUTION:

Danger of causing damage to Turbocharger shaft.

  • The Turbocharger shaft extends over the contour of the housing.

-- Hook the Engine Sling :2024A  to the turbocharger and to the Shop Crane : VAS6100  .

-- Carefully lift the turbocharger assembly.

NOTE:

The turbocharger must not be separated.
