Turbine Switch-Over Vacuum Diaphragm, Replacing: Removing
WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow all the rules of cleanliness..
-- Remove the catalytic converter.

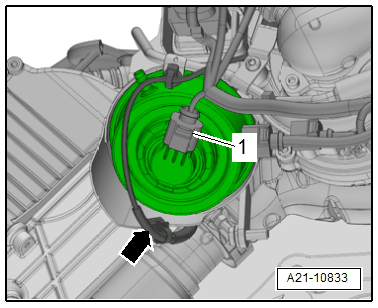

-- Disconnect the connector -1- and free up the wire -arrow-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Unclip the lock washer -1-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the vacuum hose -2-.
-- Remove the bolts -arrows- and then remove the turbine switch-over vacuum diaphragm.
