Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

2.

If equipped, release the quarter turn retainers, detach the push-pin retainers and remove the lower air deflector.

GFD135181

Courtesy of FORD MOTOR COMPANY

3.

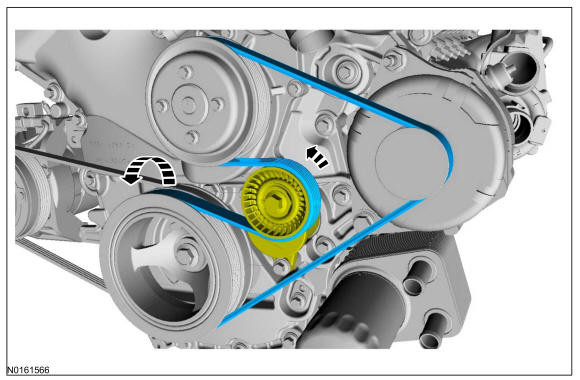

Rotate the accessory drive belt tensioner counter clockwise and remove the accessory drive belt.

GFD135796

Courtesy of FORD MOTOR COMPANY

Installation

1.

NOTE: Make sure the drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
