Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Remove the liftgate moulding. Refer to Exterior Trim and Ornamentation .

Navigator

2.

Remove the liftgate window release switch.
1. 1.

  Disconnect the liftgate window release switch electrical connector.
1. 2.

  Release the liftgate window release switch from the liftgate moulding.
1. 3.

  Remove the liftgate window release switch.

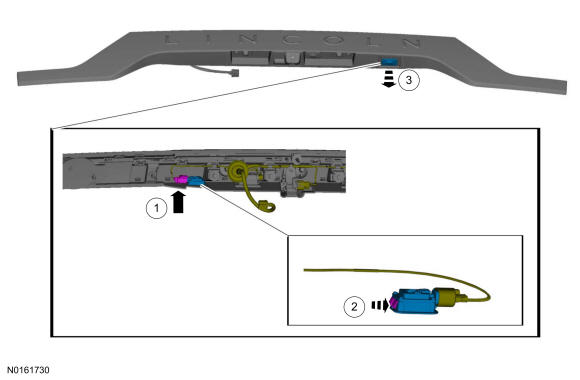

GFD137851

Courtesy of FORD MOTOR COMPANY

Expedition

3.

Remove the liftgate window release switch.
1. 1.

  Disconnect the liftgate window release switch electrical connector.
1. 2.

  Release the liftgate window release switch from the liftgate moulding.
1. 3.

  Remove the liftgate window release switch.

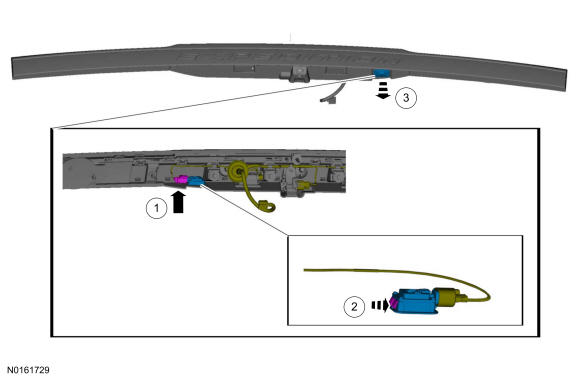

GFD137852

Courtesy of FORD MOTOR COMPANY

All vehicles

4.

To install, reverse the removal procedure.
