Transmission - Four Wheel Drive (4WD): Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the Transmission Cooler Flushing Job Aid on the FMC Dealer website.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Jacking and Lifting .

2.

Detach the wire routing retainers and disconnect the LH HO2S electrical connector.

GFD136092

Courtesy of FORD MOTOR COMPANY

3.

Remove the starter motor assembly. Refer to Starting System .

4.

Remove the front and rear driveshaft assemblies. Refer to Driveshaft .

5.

NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

Remove the bolts and the transmission fluid pan and allow the transmission fluid to drain.

GFD136093

Courtesy of FORD MOTOR COMPANY

6.

NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

Install the transmission fluid pan and the bolts.

GFD136093

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Secure the transmission to the transmission jack with a safety strap.

NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

Using a high-lift transmission jack, support the transmission.

8.

Remove the LH and RH catalytic converters. Refer to Exhaust System .

9.

If equipped, remove the nut and the selector lever cable splash shield.

GFD136043

Courtesy of FORD MOTOR COMPANY

10.

Remove and discard the transmission fluid cooler tube bracket bolt and position aside the transmission fluid cooler tubes.

GFD136094

Courtesy of FORD MOTOR COMPANY

11.

NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

Move the locking tab up and disconnect the selector lever cable end from the manual control lever.

GFD136095

Courtesy of FORD MOTOR COMPANY

12.

Remove the fuel line bracket bolt and disconnect the transfer case vent tube.

GFD136096

Courtesy of FORD MOTOR COMPANY

13.

Disconnect the transfer case electrical connector.

GFD136097

Courtesy of FORD MOTOR COMPANY

14.

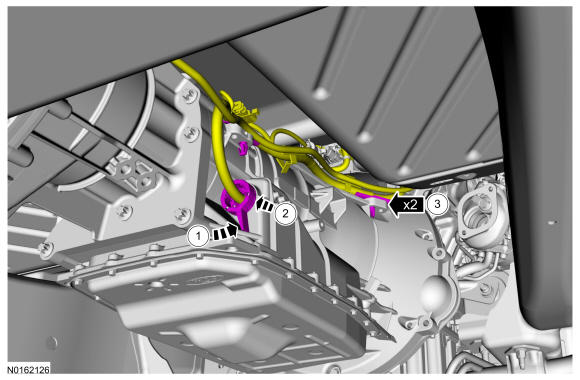

NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.
1. 1.

  Rotate the transmission electrical connector counterclockwise.
1. 2.

  Pull the transmission electrical connector out to disconnect.
1. 3.

  Detach the retainers and position the wiring harness aside.

GFD136098

Courtesy of FORD MOTOR COMPANY

15.

Remove the pin-type retainers and the access cover.

GFD136099

Courtesy of FORD MOTOR COMPANY

16.

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

Remove and discard the torque converter nuts.

GFD136100

Courtesy of FORD MOTOR COMPANY

17.

Remove the RH side bellhousing bolts.

GFD136101

Courtesy of FORD MOTOR COMPANY

18.

Remove the top bellhousing bolts.

GFD136102

Courtesy of FORD MOTOR COMPANY

19.

Remove the remaining bellhousing bolts.

GFD136103

Courtesy of FORD MOTOR COMPANY

20.

Slide the transmission back enough to install the Torque Converter Retainer.

GFD136104

Courtesy of FORD MOTOR COMPANY

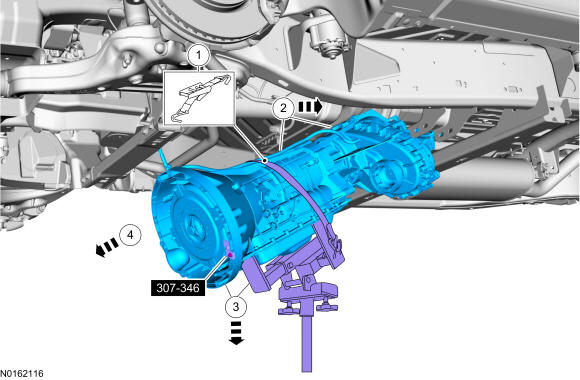

21.
1. 1.

  Make sure the transmission is securely fastened to the transmission jack.
1. 2.

  Slide the transmission towards the rear of the vehicle.
1. 3.

  Tilt the front of the transmission down.
1. 4.

  Remove the transmission from the vehicle.

GFD136105

Courtesy of FORD MOTOR COMPANY

22.

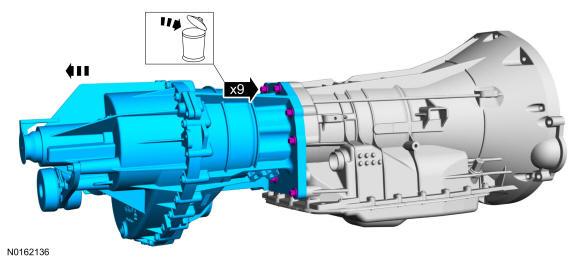

If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts and separate the transfer case from the transmission.

GFD136106

Courtesy of FORD MOTOR COMPANY

23.

NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the Transmission Fluid Cooler Backflushing and Cleaning procedure. Refer to Transaxle Transmission Cooling .
