Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

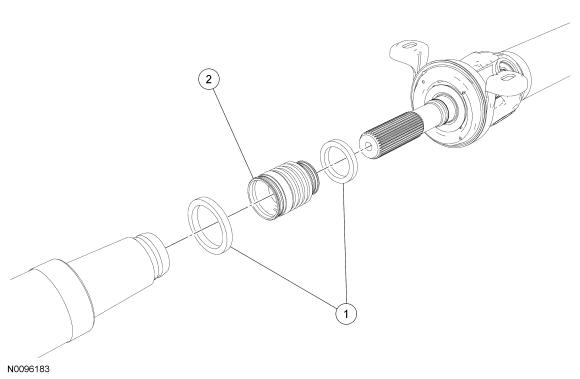

| Item |
Part Number |
Description |
| 1 |
3B478 |
Clamp (2 required) |
| 2 |
4421 |
Boot |
- 2.
Index-mark the driveshaft to the center bearing for correct alignment during installation.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

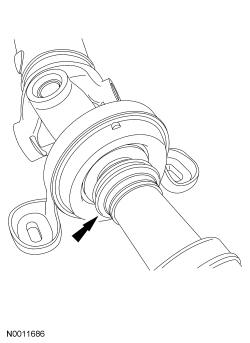

Remove clamps and disconnect the slip yoke boot.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

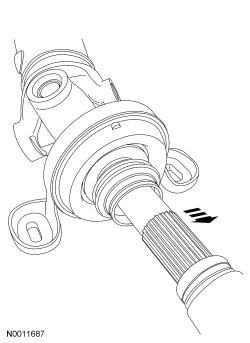

Separate the driveshaft.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

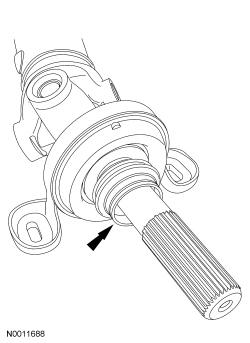

Remove the slip yoke boot.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
NOTE:
Lubricate the slip yoke splines with premium long-life grease.
To install, reverse the removal procedure.
- Align the index marks for correct alignment.
