Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: This procedure provides Information about routing, retaining points and connectors of the cable. It does not Include the steps for removing components to gain access to the cable.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to Identification Codes .

2.

Disconnect the battery. Refer to: Battery Disconnect .

3.

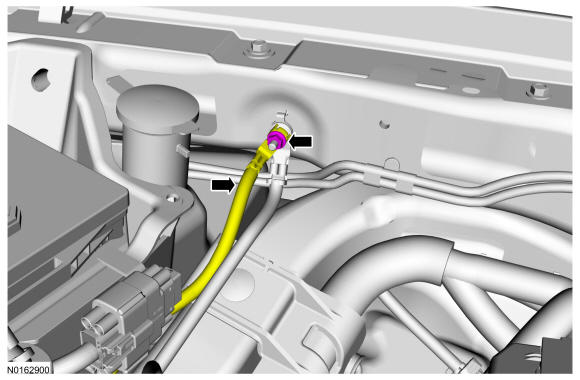

Remove the nut from the EPAS body ground terminal stud bolt and position the cable aside.
- To Install, tighten to 92 lb-in (10.5 Nm).

GFD136870

Courtesy of FORD MOTOR COMPANY

4.

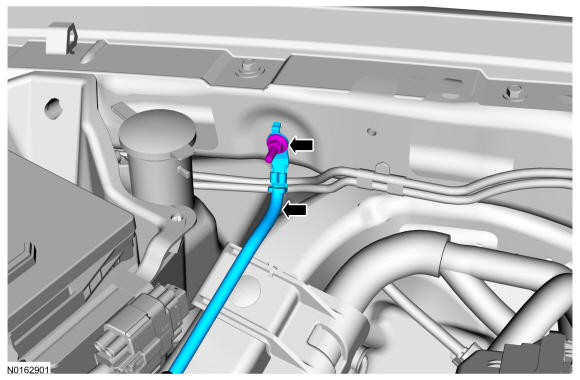

Remove the battery cable body ground terminal stud bolt and position the cable aside.
- To install, tighten to 106 lb-in (12 Nm).

GFD136871

Courtesy of FORD MOTOR COMPANY

5.

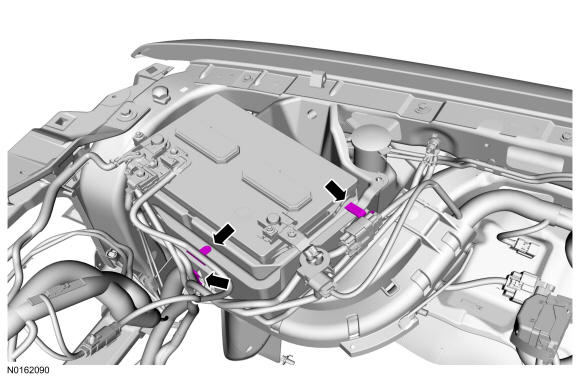

Disconnect the 3 battery cable harness retainers from the battery tray.

GFD136872

Courtesy of FORD MOTOR COMPANY

6.

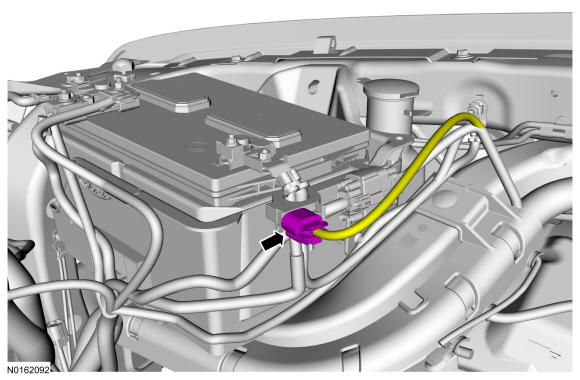

Disconnect the battery current sensor electrical connector.

GFD136873

Courtesy of FORD MOTOR COMPANY

7.

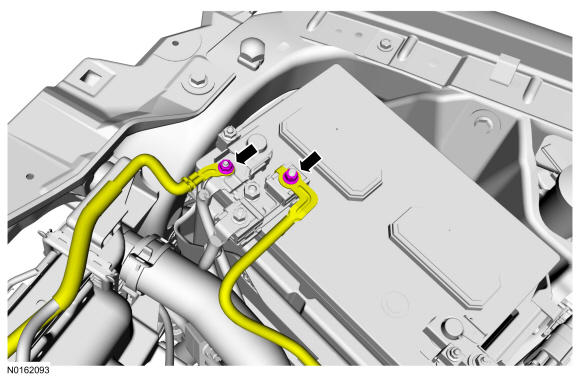

Remove the Power Steering Control Module (PSCM) harness positive terminal nut and the Battery Junction Box (BJB) harness positive terminal nut and position the cables aside.
- To install, tighten Power Steering Control Module (PSCM) harness positive terminal nut to 9 Nm (80 lb-in).
- To install, tighten Battery Junction Box (BJB) harness positive terminal nut to 9 Nm (80 lb-in).

GFD136874

Courtesy of FORD MOTOR COMPANY

8.

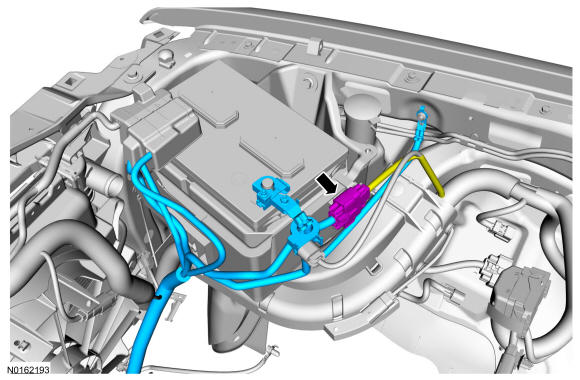

Disconnect the battery cable in line electrical connector.

GFD136875

Courtesy of FORD MOTOR COMPANY

9.

Remove the battery tray. Refer to Battery Tray .

10.

Remove the air cleaner outlet pipe. Refer to Intake Air Distribution and Filtering .

11.

Disconnect the quick connect couplings and disconnect the turbocharger bypass tube. Refer to Fuel System General Information .

GFD135127

Courtesy of FORD MOTOR COMPANY

12.
- 1.

  Release the turbocharger inlet tube from the turbocharger inlet tube bracket grommet.
- 2.

  Loosen the turbocharger inlet tube clamp and remove the turbocharger inlet tube.
- To Install, tighten to 5 Nm (44 lb-In).

GFD135128

Courtesy of FORD MOTOR COMPANY

13.

Release the turbocharger outlet tube from the retaining clamp and release the turbocharger outlet tube from the turbocharger outlet tube bracket grommet. Loosen the turbocharger outlet tube clamp and remove the turbocharger outlet tube.
- To Install, tighten to 5 Nm (44 lb-In).

GFD135129

Courtesy of FORD MOTOR COMPANY

14.

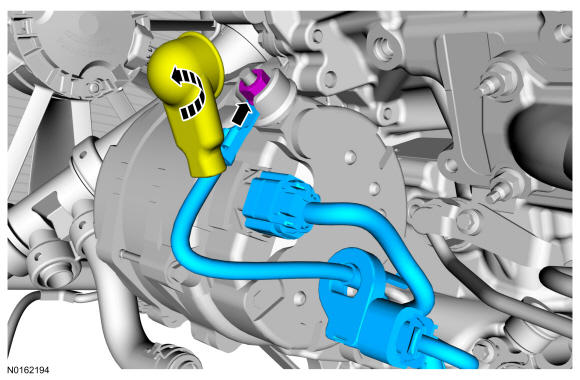

Remove the generator B+ cable end cover and the B+ cable end nut and position the cable aside.
- To Install, tighten to 17 Nm (150 lb-In).

GFD136876

Courtesy of FORD MOTOR COMPANY

15.

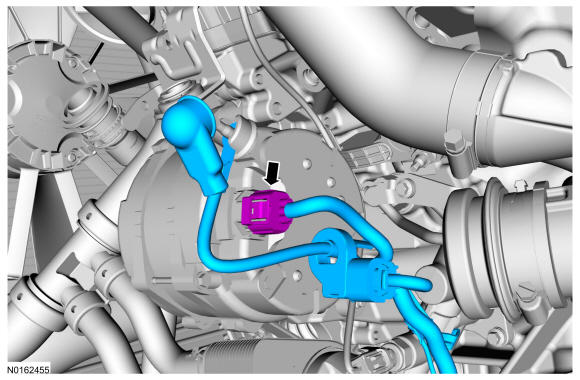

Disconnect the generator electrical connector.

GFD136877

Courtesy of FORD MOTOR COMPANY

16.

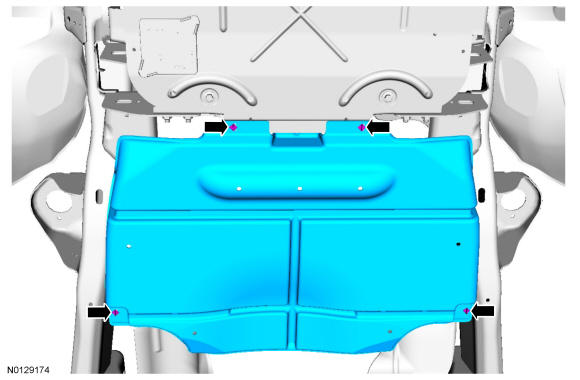

If equipped, turn the 4 quarter-turn retainers and remove the rear splash shield.

GFD136878

Courtesy of FORD MOTOR COMPANY

17.

Turn the 4 quarter retainers, detach the 8 pushpins and remove the lower air deflector.

GFD135181

Courtesy of FORD MOTOR COMPANY

18.

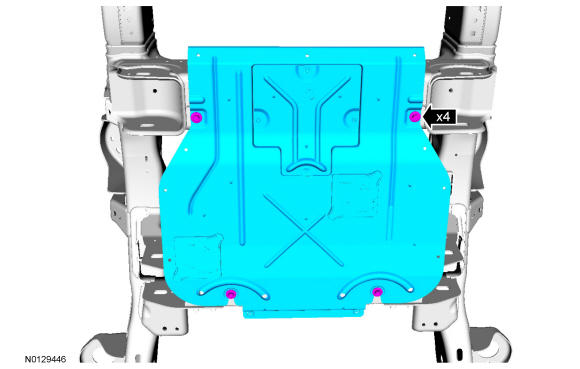

If equipped, remove the 4 bolts and the skid plate.
- To Install, tighten to 48 Nm (35lb-ft).

GFD136879

Courtesy of FORD MOTOR COMPANY

19.

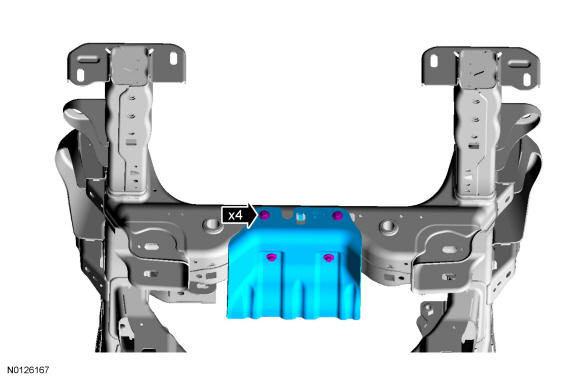

If equipped, remove the 4 bolts and the Power Steering Control Module (PSCM) skid plate.
- To Install, tighten to 40 Nm (30lb-ft).

GFD136880

Courtesy of FORD MOTOR COMPANY

20.

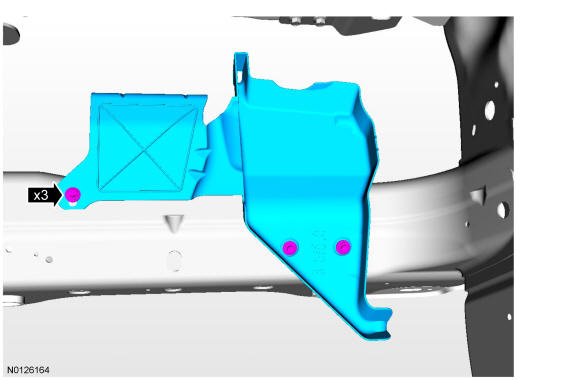

Remove the 3 bolts and the oil filter drip shield.
- To Install, tighten to 7 Nm (62 lb-In).

GFD136881

Courtesy of FORD MOTOR COMPANY

21.

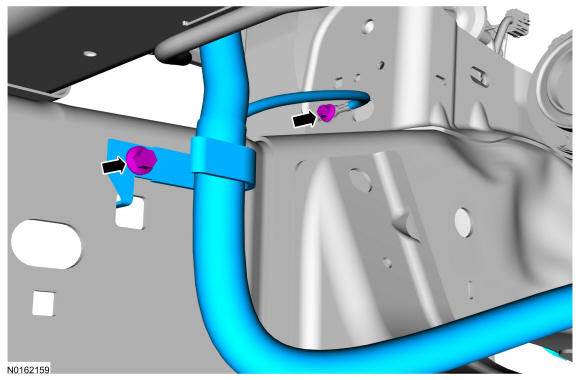

Remove the battery cable harness bracket bolt and the battery cable chassis ground terminal bolt.
- To Install, tighten the battery cable harness bracket bolt to 20 Nm (177 lb-In).
- To Install, tighten the battery cable chassis ground terminal bolt to 20 Nm (177 lb-In).

GFD136882

Courtesy of FORD MOTOR COMPANY

22.

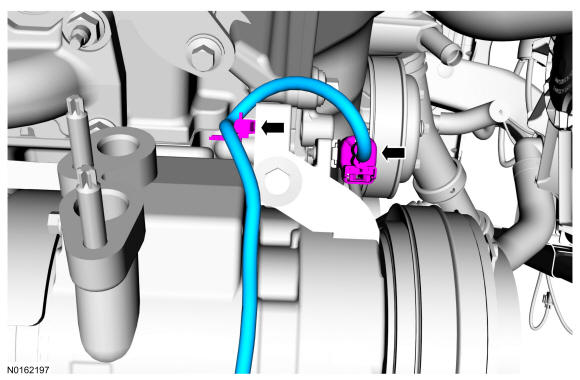

Disconnect the harness retainer and the A/C compressor harness electrical connector.

GFD136883

Courtesy of FORD MOTOR COMPANY

23.

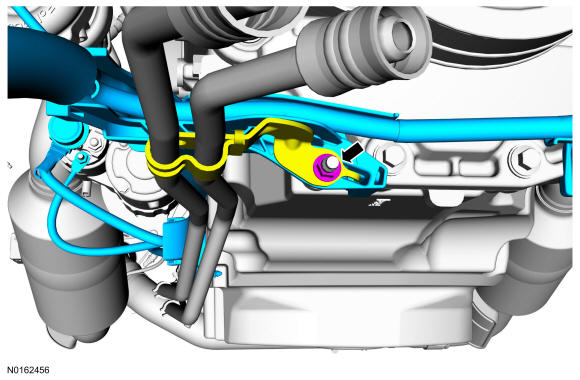

Remove the battery cable shield nut and position the transmission fluid cooler tube bracket aside.
- To Install, tighten to 12 Nm (106 lb-In).

GFD136884

Courtesy of FORD MOTOR COMPANY

24.

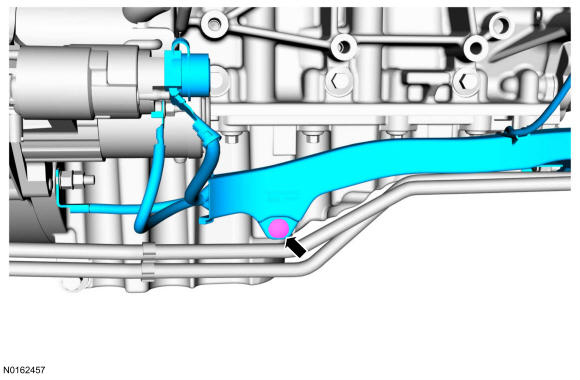

Remove the wire harness retainer from the battery cable shield.

GFD136885

Courtesy of FORD MOTOR COMPANY

25.

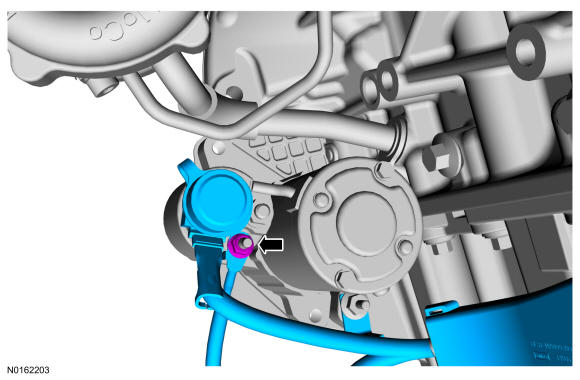

Remove the starter solenoid wire terminal nut and position the cable aside.
- To install, tighten to 5 Nm (44 lb-In).

GFD136886

Courtesy of FORD MOTOR COMPANY

26.

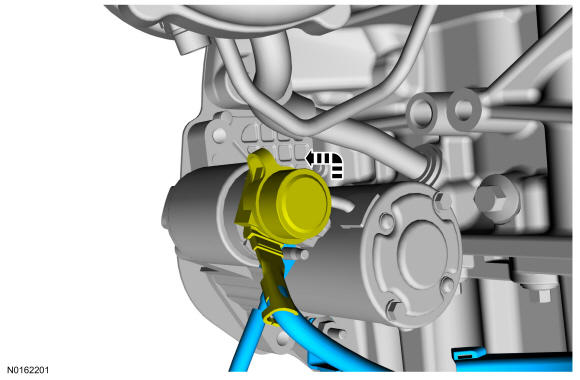

Remove the starter solenoid terminal cover.

GFD136887

Courtesy of FORD MOTOR COMPANY

27.

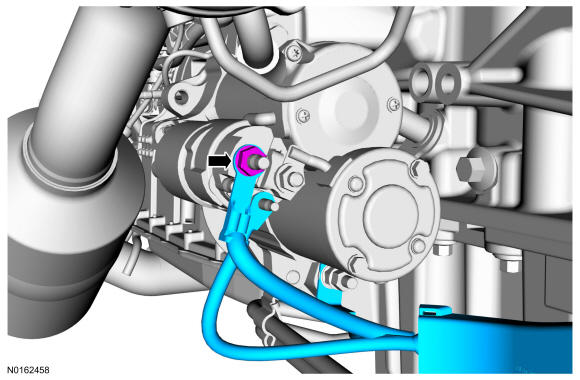

Remove the starter solenoid positive cable terminal nut and position the cable aside.
- To Install, tighten to 12 Nm (106 lb-In).

GFD136888

Courtesy of FORD MOTOR COMPANY

28.

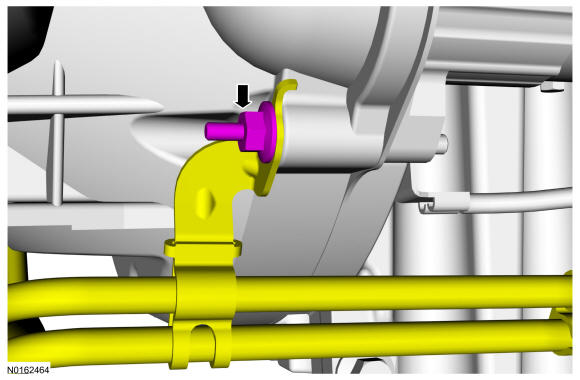

Remove the stud bolt and position the transmission fluid cooler tube bracket aside.
- To Install, tighten to 12 Nm (106 lb-In).

GFD136889

Courtesy of FORD MOTOR COMPANY

29.

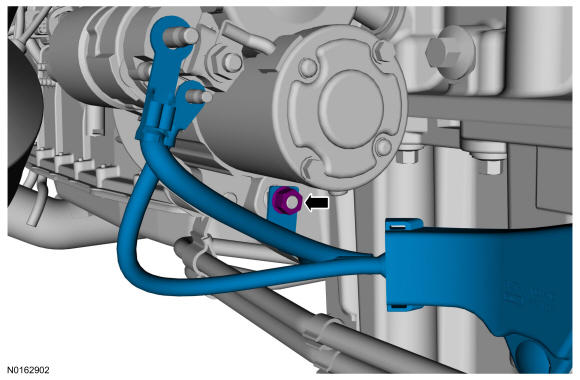

Remove the battery cable engine ground terminal nut.
- To Install, tighten to 25 Nm (221 lb-in).

GFD136890

Courtesy of FORD MOTOR COMPANY

Vehicle with Four-Wheel Drive(4WD)

30.

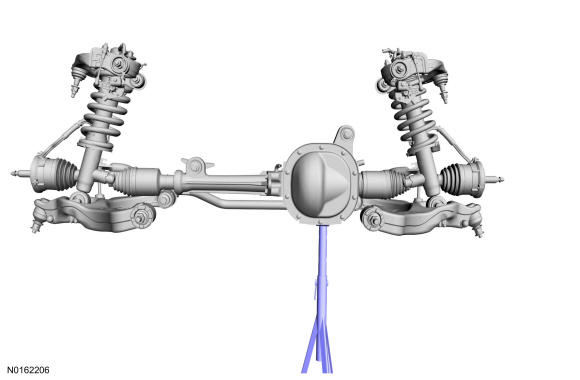

Position a suitable hydraulic jack under the front axle. Securely strap the axle to the jack.

GFD136891

Courtesy of FORD MOTOR COMPANY

31.

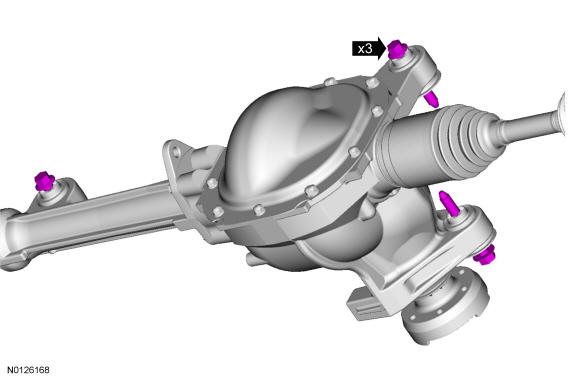

Remove the front axle mounting bolts and lower the front axle to allow clearance to the wire harness retainers at the engine front cover and the block.
- To Install, tighten to 115 Nm (85 lb-ft).

GFD136892

Courtesy of FORD MOTOR COMPANY

All vehicles

32.

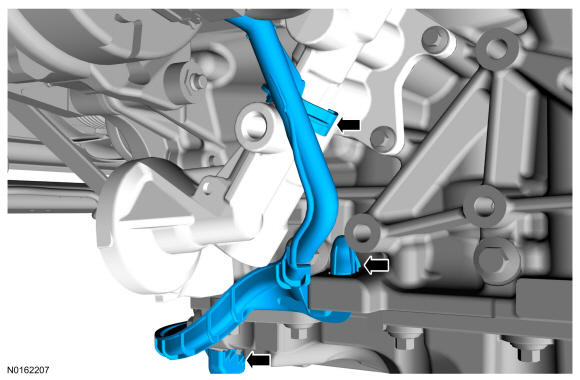

Disconnect the wire harness retainers from the engine front cover, engine block and the oil filter adapter.

GFD136893

Courtesy of FORD MOTOR COMPANY

33.

Remove the battery cable.

34.

To Install, reverse the removal procedure.
