DTC B124C: Automatic High Beam Camera [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

w/ Dynamic Radar Cruise Control System

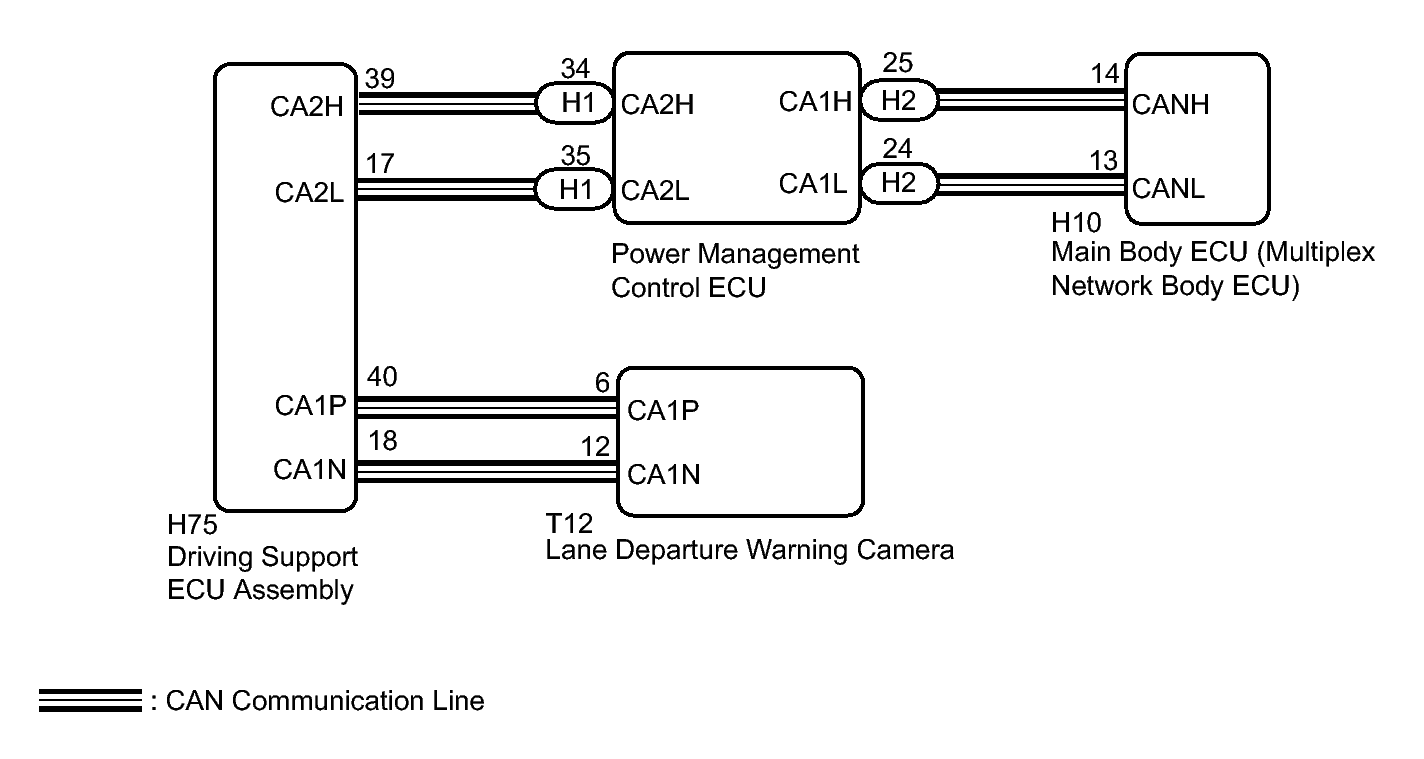

Fig 1: Automatic High Beam Camera Circuit Diagram (W/ Dynamic Radar Cruise Control System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Dynamic Radar Cruise Control System

Fig 2: Automatic High Beam System Circuit Diagram (W/O Dynamic Radar Cruise Control System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
