DTC B1860/64: Short in Driver Side Knee Airbag Squib Circuit; DTC B1861/64: Open in Driver Side Knee Airbag Squib Circuit; DTC B1862/64: Short to GND in Driver Side Knee Airbag Squib Circuit; DTC B1863/64: Short to B+ in Driver Side Knee Airbag Squib Circuit [08/2013 - ]: Procedure

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONNECTORS
    1. Turn the power switch off.
      GTY321002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

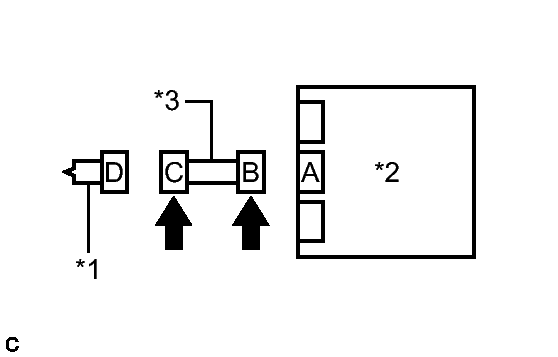

    3. Check that the connectors are properly connected to the lower No. 1 instrument panel airbag assembly and airbag sensor assembly.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the lower No. 1 instrument panel airbag assembly and airbag sensor assembly.
    5. Check that the terminals of the connectors are not damaged.

      OK

      The terminals are not deformed or damaged.

    6. Check that the instrument panel wire connector (on the lower No. 1 instrument panel airbag assembly side) is not damaged.

      OK

      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

    7. Check that the short spring for the instrument panel wire with the activation prevention mechanism are not deformed or damaged.

      OK

      The short spring is not deformed or damaged.

      TEXT IN ILLUSTRATION

      *1 Lower No. 1 Instrument Panel Airbag Assembly
      *2 Airbag Sensor Assembly
      *3 Instrument Panel Wire

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  2. CHECK LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (DRIVER SIDE KNEE AIRBAG SQUIB)
    1. Connect the connector to the airbag sensor assembly.
      GTY416572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

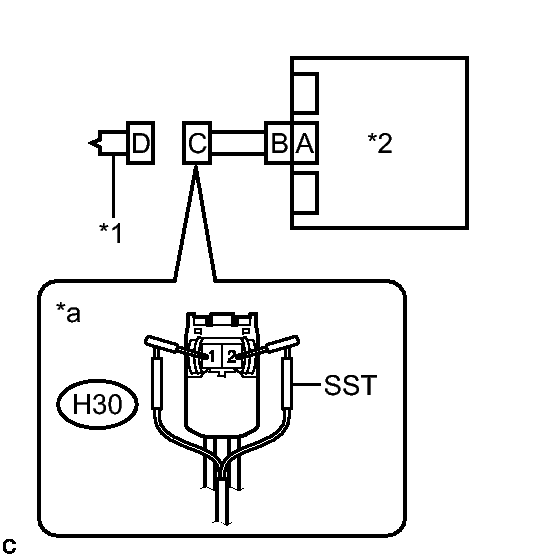

    2. Connect SST (resistance 2.1 Ω) to connector C.
      WARNING:

      Never connect the tester to the lower No. 1 instrument panel airbag assembly (driver side knee airbag squib) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting it.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    3. Connect the cable to the negative (-) auxiliary battery terminal.
    4. Clear the DTCs stored in memory. Refer to DTC CHECK / CLEAR [08/2013 - ] .
    5. Turn the power switch off.
    6. Turn the power switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs. Refer to DTC CHECK / CLEAR [08/2013 - ] .

      OK

      DTC B1860/64, B1861/64, B1862/64 or B1863/64 is not output.

      HINT:

      Codes other than DTCs B1860/64, B1861/64, B1862/64 and B1863/64 may be output at this time, but they are not related to this check.

    8. Turn the power switch off.
    9. Disconnect the cable from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    10. Disconnect SST from connector C.
      TEXT IN ILLUSTRATION

      *1 Lower No. 1 Instrument Panel Airbag Assembly
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Lower No. 1 Instrument Panel Airbag Assembly)

    NG → See step   3

    OK → See step   6

  3. CHECK INSTRUMENT PANEL WIRE

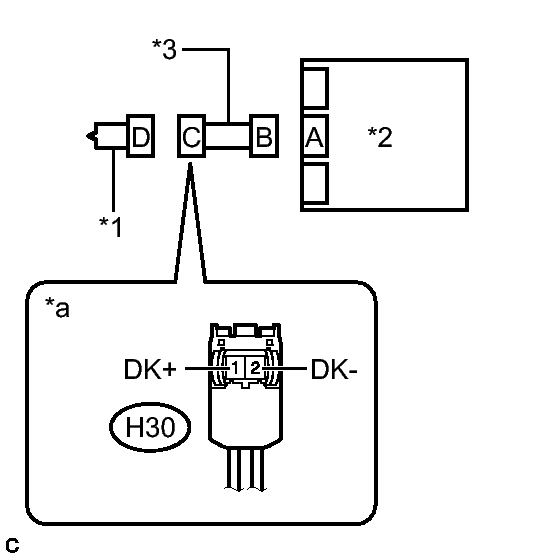

    1. Disconnect the instrument panel wire from the airbag sensor assembly.
      GTY398977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check for a short to B+ in the circuit.
      1. Connect the cable to the negative (-) auxiliary battery terminal.
      2. Turn the power switch on (IG).
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Condition Specified Condition
        H30-1 (DK+) - Body ground Power switch on (IG) Below 1 V
        H30-2 (DK-) - Body ground Power switch on (IG) Below 1 V
      4. Turn the power switch off.
      5. Disconnect the cable from the negative (-) auxiliary battery terminal.
        WARNING:

        Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Check for an open in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        H30-1 (DK+) - H30-2 (DK-) Always Below 1 Ω
    4. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        H30-1 (DK+) - Body ground Always 1 MΩ or higher
        H30-2 (DK-) - Body ground Always 1 MΩ or higher
    5. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM [08/2013 - ] .
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        H30-1 (DK+) - H30-2 (DK-) Always 1 MΩ or higher
      3. Restore the released activation prevention mechanism of connector B to the original condition.
        TEXT IN ILLUSTRATION

        *1 Lower No. 1 Instrument Panel Airbag Assembly
        *2 Airbag Sensor Assembly
        *3 Instrument Panel Wire
        *a Front view of wire harness connector
        (to Lower No. 1 Instrument Panel Airbag Assembly)

    NG → REPLACE INSTRUMENT PANEL WIRE

    OK: Go to next step

  4. CHECK DTC
    1. Connect the connectors to the lower No. 1 instrument panel airbag assembly and airbag sensor assembly.
      GTY318060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) auxiliary battery terminal.
    3. Clear the DTCs stored in memory. Refer to DTC CHECK / CLEAR [08/2013 - ] .
    4. Turn the power switch off.
    5. Check for DTCs. Refer to DTC CHECK / CLEAR [08/2013 - ] .

      OK

      DTC B1860/64, B1861/64, B1862/64 or B1863/64 is not output.

      HINT:

      Codes other than DTCs B1860/64, B1861/64, B1862/64 and B1863/64 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Lower No. 1 Instrument Panel Airbag Assembly
      *2 Airbag Sensor Assembly

    NG → See step   7

    OK → See step   5

  5. USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2013 - ]
  6. REPLACE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY. Refer to  REMOVAL [08/2013 - ]
  7. REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [08/2013 - ]
