Inspection [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

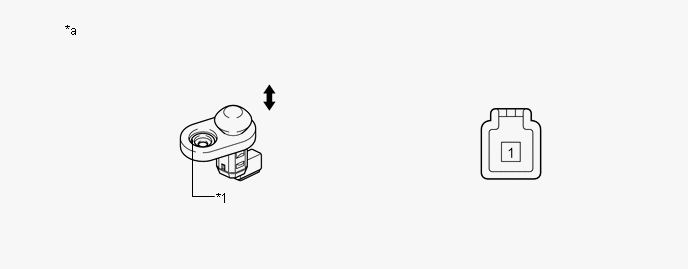

TEXT IN ILLUSTRATION*a Component without harness connected
(Rear Door Courtesy Light Switch Assembly)- - *1 Switch Body - - Standard Resistance
Tester Connection Condition Specified Condition 1 - Switch body Not pushed (ON) Below 1 Ω Pushed (OFF) 10 kΩ or higher If the result is not as specified, replace the rear door courtesy light switch assembly.
- Measure the resistance according to the value(s) in the table below.
