Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

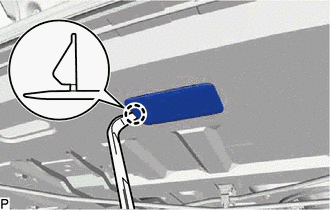

1. Using a molding remover, disengage the claw.

  Fig 1: Disengaging Claw With Molding Remover Tool
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the No. 1 luggage compartment light assembly.
REMOVE LUGGAGE COMPARTMENT LIGHT BULB
1. Disengage the 4 claws and remove the shade from the lens.

  Fig 2: Identifying Shade Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the luggage compartment light bulb from the lens.
