Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ID CODE BOX (IMMOBILISER CODE ECU)
1. Engage the 2 guides.

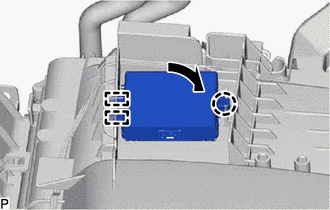

  Fig 1: Installing ID Code Box (Immobiliser Code ECU)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw as shown in the illustration to install the ID code box (immobiliser code ECU).
INSTALL AIR CONDITIONING UNIT ASSEMBLY
Refer to INSTALLATION [08/2013 - ]
REGISTER ECU CODE
NOTE:
If the ID code box (immobiliser code ECU) is replaced, register the ECU code and ECU communication ID. Refer to REGISTRATION [08/2013 - ] .
REGISTER ECU COMMUNICATION ID
NOTE:
If the ID code box (immobiliser code ECU) is replaced, register the ECU code and ECU communication ID. Refer to REGISTRATION [08/2013 - ] .
