Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LUGGAGE COMPARTMENT FLOOR MAT . Refer to REMOVAL [08/2013 - ] - Step 5
REMOVE SPARE WHEEL COVER PAD LH (for Full Size Spare Tire) . Refer to REMOVAL [08/2013 - ] - Step 6
REMOVE SPARE WHEEL COVER PAD RH (for Full Size Spare Tire) . Refer to REMOVAL [08/2013 - ] - Step 7
REMOVE LUGGAGE COMPARTMENT FRONT TRIM COVER . Refer to REMOVAL [08/2013 - ] - Step 10
REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for RH Side) . Refer to REMOVAL [08/2013 - ] - Step 14
REMOVE ROPE HOOK (for RH Side) . Refer to REMOVAL [08/2013 - ] - Step 15
REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/o Power Trunk Lid System) . Refer to REMOVAL [08/2013 - ] - Step 16
REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ Power Trunk Lid System) . Refer to REMOVAL [08/2013 - ] - Step 17

REMOVE FRONT NO. 1 LUGGAGE COMPARTMENT TRIM COVER

Using a clip remover, remove the 2 clips.

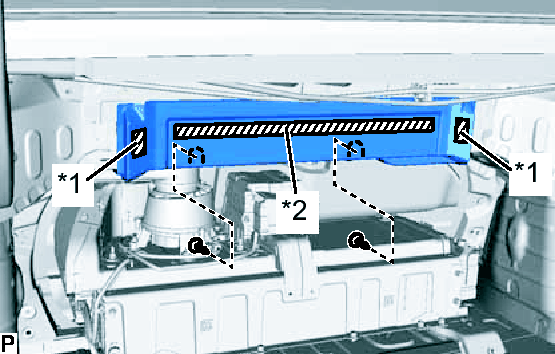

Fig 1: Removing Front No. 1 Luggage Compartment Trim Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Fastener
*2	Double-sided tape

Disengage the 2 fasteners and detach the double-sided tape, and remove the front No. 1 luggage compartment trim cover.

REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
1. Disconnect the connector.

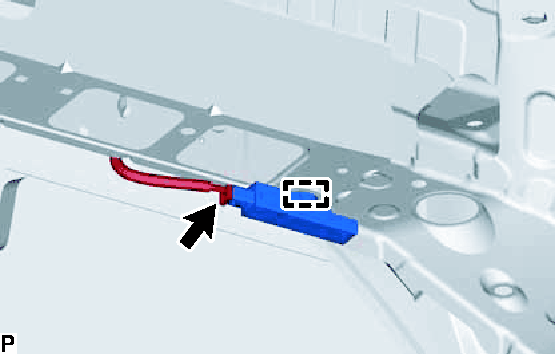

  Fig 2: Locating No. 1 Indoor Electrical Key Antenna Assembly Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp and remove the No. 1 indoor electrical key antenna assembly.
  NOTE:
  Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
