DTC C1AA2: Vehicle Speed Tolerance Malfunction [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

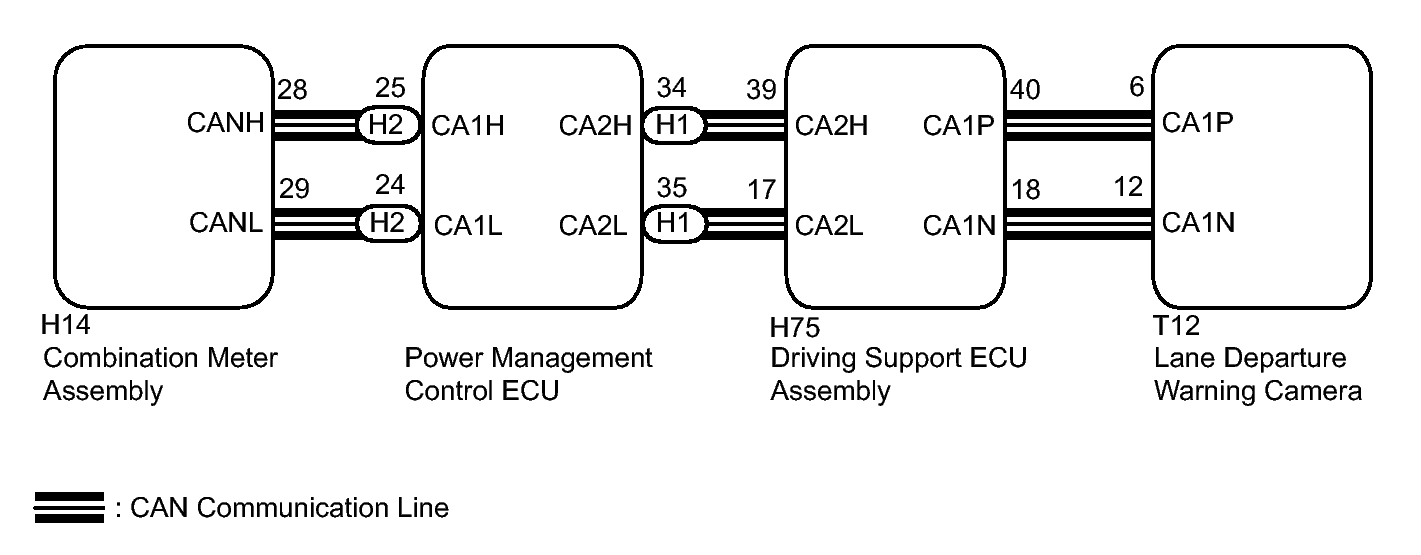

Fig 1: Identifying Vehicle Speed Tolerance Wiring Diagram
GTY411950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
