Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:
    • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.Refer to PRECAUTION [08/2013 - ] .
    • A Hard Disk Drive (HDD) is built into the multi-media module receiver assembly to store map and other data, and is used for the navigation system. Therefore, care must be taken for the following points when handling the multi-media module receiver assembly.
    • When removing the hard disk drive, eliminate static electricity by touching the vehicle body to prevent components from being damaged.
  2. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)  . Refer to REMOVAL [08/2013 - ] - Step 1
  3. REMOVE LUGGAGE TRIM SERVICE HOLE COVER  . Refer to REMOVAL [08/2013 - ] - Step 2
  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.Refer to INITIALIZATION [08/2013 - ] .

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 5
  6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to REMOVAL [08/2013 - ] - Step 12
  7. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 13
  8. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL  . Refer to REMOVAL [08/2013 - ] - Step 14
  9. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY WITH BRACKET
    1. Remove the 4 bolts.

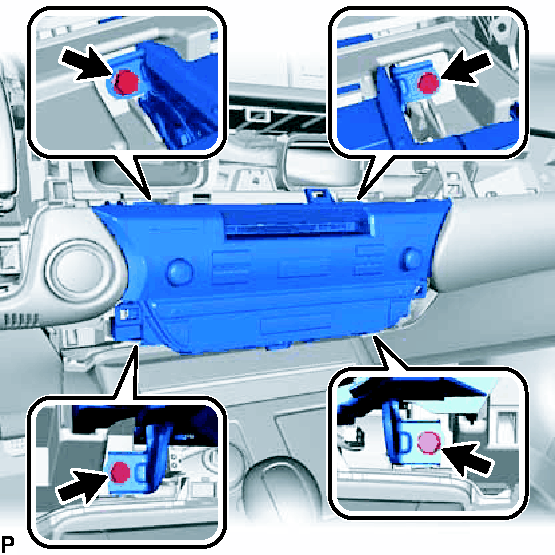

      Fig 1: Locating Multimedia Module Receiver Assembly Bracket Bolts
      GTY413468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the multi-media module receiver assembly with bracket toward the rear of the vehicle and disengage the 2 clips and 2 claws.

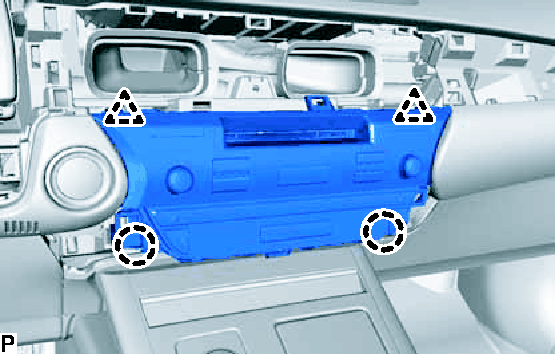

      Fig 2: Identifying Multimedia Module Receiver Assembly Bracket Clips And Claws
      GTY413768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect each connector and remove the multi-media module receiver assembly with bracket.
  10. REMOVE NO. 1 RADIO BRACKET
    1. Remove the 4 screws and No. 1 radio bracket.

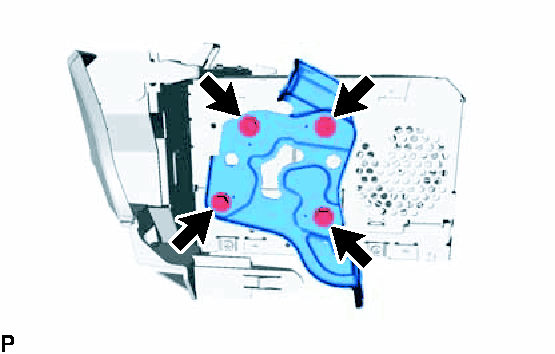

      Fig 3: Locating No. 1 Radio Bracket & 4 Screws
      GTY400985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 RADIO BRACKET
    1. Remove the 4 screws and No. 2 radio bracket.

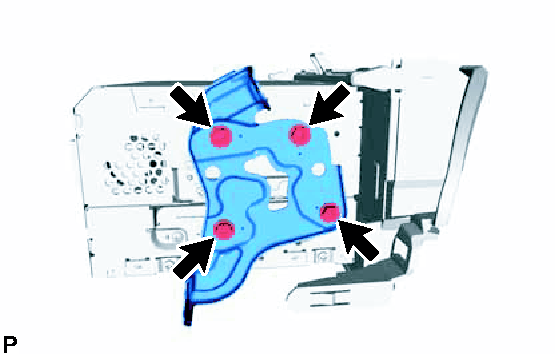

      Fig 4: Locating No. 2 Radio Bracket & 4 Screws
      GTY401081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE HARD DISK DRIVE  See step  11
  13. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY
