Installation [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
When installing the hard disk drive, eliminate static electricity by touching the vehicle body to prevent components from being damaged.
- INSTALL HARD DISK DRIVE

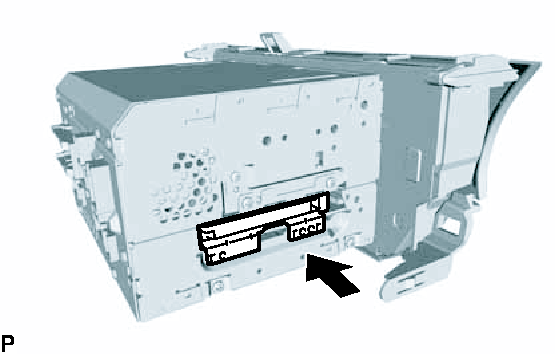

- Insert the hard disk drive in the direction shown by the arrow in the illustration to install it.
- Engage the 2 guides to temporarily install the cover.
- Install the cover with the 2 screws.
- INSTALL NO. 2 RADIO BRACKET See step 4
- INSTALL MULTI-MEDIA MODULE RECEIVER ASSEMBLY WITH BRACKET See step 6
- INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL . Refer to INSTALLATION [08/2013 - ] - Step 38
- INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY . Refer to INSTALLATION [08/2013 - ] - Step 39
- INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH . Refer to INSTALLATION [08/2013 - ] - Step 40
- INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION [08/2013 - ] - Step 2
- CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.Refer to INITIALIZATION [08/2013 - ] .
- INSTALL LUGGAGE TRIM SERVICE HOLE COVER . Refer to INSTALLATION [08/2013 - ] - Step 3
- INSPECT HARD DISK DRIVE
Refer to OPERATION CHECK [08/2013 - ]
- CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column) . Refer to INSTALLATION [08/2013 - ] - Step 6
