Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TELEPHONE ANTENNA ASSEMBLY
1. Engage the guide and 2 claws to temporarily install the telephone antenna assembly.
2. Place the antenna cord in the cutout of the antenna nut.

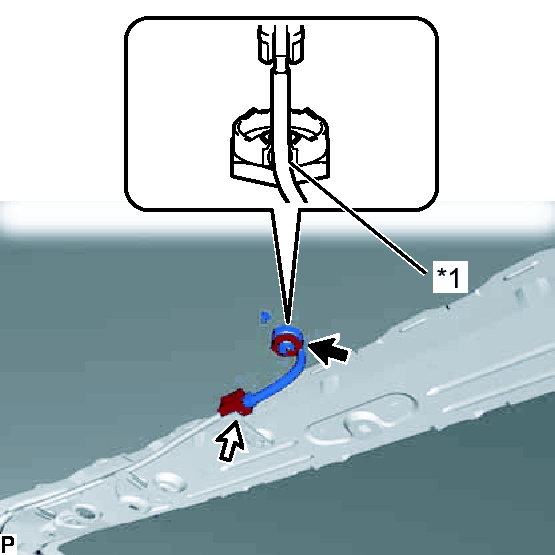

  Fig 1: Installing Antenna Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Cutout
3. Install the telephone antenna assembly with the antenna nut.
  Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)
4. Connect the connector.
INSTALL ROOF HEADLINING ASSEMBLY
Refer to INSTALLATION [08/2013 - ]
