Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SEATBACK ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE REAR DOOR SCUFF PLATE RH
HINT:

Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 8 .
REMOVE REAR SEAT SIDE GARNISH RH
HINT:

Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 18 .
REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
HINT:

Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 19 .
REMOVE AMPLIFIER ANTENNA ASSEMBLY
1. Disconnect each connector.

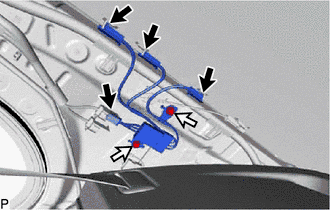

  Fig 1: Locating Amplifier Antenna Assembly Connectors & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and the amplifier antenna assembly.
