Disassembly [08/2013 - ]

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

1. REMOVE SEAT POSITION AIRBAG SENSOR (for Driver Side)  . Refer to REMOVAL [08/2013 - ] - Step 2
2. REMOVE POWER SEAT SWITCH ASSEMBLY (for Front Passenger Side with Power Seat Switch Assembly)  See step  1
3. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/o Foot Light)
   1. Disconnect the rubber band of the front seatback board sub-assembly from the front seat adjuster assembly.
      Fig 1: Identifying Rubber Band Of The Front Seatback Board Sub-Assembly (W/O Foot Light)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. DISCONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/ Foot Light)
   1. Disconnect the rubber band of the front seatback board sub-assembly from the front seat adjuster assembly.
      Fig 2: Identifying Rubber Band Of The Front Seatback Board Sub-Assembly (W/ Foot Light)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disengage the 2 fasteners.
      Fig 3: Identifying Fasteners

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. for Driver Side:
      1. Disengage the 2 clamps.
         Fig 4: Identifying Clamps & Connector

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.
   4. for Front Passenger Side:
      1. Disengage the clamp.
         Fig 5: Identifying Clamp & Connector

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the connector.
5. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY (w/ Foot Light)  . Refer to REMOVAL [08/2013 - ] - Step 3
6. REMOVE FRONT SEAT INNER CUSHION SHIELD
   1. Remove the clip.
      Fig 6: Identifying Clip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the screw.
      Fig 7: Identifying Screw

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Disengage the 3 claws and 4 guides to remove the front seat inner cushion shield.
      Fig 8: Identifying Front Seat Inner Cushion Shield Claws & Guides

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)  . Refer to REMOVAL [08/2013 - ] - Step 5
8. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)  . Refer to REMOVAL [08/2013 - ] - Step 6
9. REMOVE SEAT ADJUSTER COVER CAP
   1. Remove the 2 seat adjuster cover caps.
      Fig 9: Identifying Seat Adjuster Cover Caps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD
    1. Remove the 2 screws.
       Fig 10: Identifying Screws, Claws & Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 2 clips to remove the front inner No. 1 seat cushion shield.
11. REMOVE FRONT POWER ADJUSTER SHIELD
    1. Remove the 2 screws.
       Fig 11: Identifying Screws & Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the front power adjuster shield.
    3. w/ Variable Seat Cushion System:
       1. Disconnect the connector from the seat variable cushion switch.
          Fig 12: Identifying Variable Seat Cushion System Connector

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/o Seat Position Memory System:
       1. Disconnect the connector from the front power seat switch.
          Fig 13: Identifying Front Power Seat Switch Connector

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. w/ Seat Position Memory System:
       1. Disconnect the 2 connectors from the front power seat switch.
          Fig 14: Identifying Connectors

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the connector from the front lumbar power seat switch.
       Fig 15: Identifying Front Lumbar Power Seat Switch Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
    1. Using a molding remover, disengage the 4 claws to remove the slide and vertical power seat switch knob.
       Fig 16: Removing Slide & Vertical Power Seat Switch Knob

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE RECLINING POWER SEAT SWITCH KNOB
    1. Using a molding remover, disengage the 4 claws to remove the reclining power seat switch knob.
       Fig 17: Removing Reclining Power Seat Switch Knob

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE SEAT VARIABLE CUSHION SWITCH (w/ Variable Seat Cushion System)  See step  4
15. REMOVE FRONT POWER SEAT SWITCH (w/o Seat Position Memory System)  . Refer to REMOVAL [08/2013 - ] - Step 6
16. REMOVE FRONT POWER SEAT SWITCH (w/ Seat Position Memory System)  . Refer to REMOVAL [08/2013 - ] - Step 6
17. REMOVE FRONT LUMBAR POWER SEAT SWITCH  See step  7

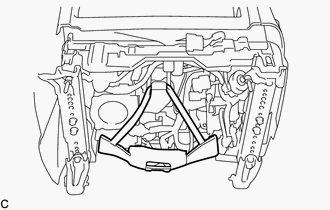

18. REMOVE FRONT SEAT CUSHION SHIELD

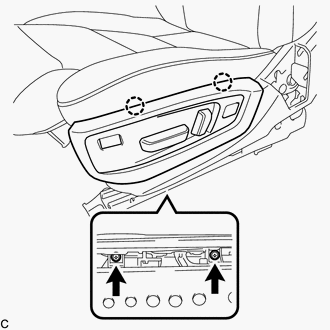

    1. Remove the 2 screws.

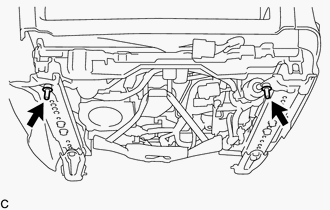

       Fig 18: Identifying Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

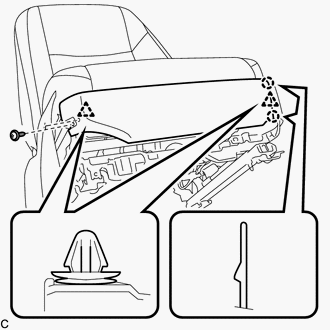

    2. Disengage the 3 claws and 5 guides to remove the front seat cushion shield.

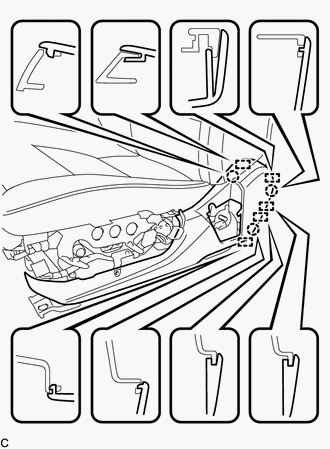

       Fig 19: Identifying Claws & Guides

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE FRONT LOWER SEAT CUSHION SHIELD
    1. Remove the screw.
       Fig 20: Identifying Screw & Clip

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clip to remove the front lower seat cushion shield.
20. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (w/o Variable Seat Cushion System)
    1. w/o Seat Heater System:
       1. Disengage the 2 clamps.

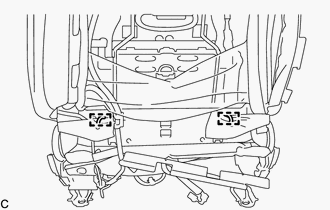

          Fig 21: Identifying Clamps

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:
       1. Disconnect the connector.
          Fig 22: Identifying Connector & Clamps

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       2. Disengage the 3 clamps.
       3. Disconnect the 2 connectors.
          Fig 23: Identifying Connectors

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Climate Control Seat System:
       1. Disengage the 3 claws to separate the seat cushion climate control duct from the separate type front seat cushion pad.
          Fig 24: Identifying Claws

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 clips.
       Fig 25: Identifying Clips & Hooks

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage each hook and remove the separate type front seat cushion cover with pad.
21. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (w/ Variable Seat Cushion System)
    1. w/o Seat Heater System:
       1. Disengage the 2 clamps.
          Fig 26: Identifying Clamps

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Seat Heater System:
       1. Disconnect the connector.
          Fig 27: Identifying Connector & Clamps

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       2. Disengage the 3 clamps.
       3. Disconnect the 2 connectors.
          Fig 28: Identifying Connectors

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Climate Control Seat System:
       1. Disengage the 3 claws to separate the seat cushion climate control duct from the separate type front seat cushion pad.
          Fig 29: Identifying Seat Cushion Climate Control Duct & Claws

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 clips.
       Fig 30: Identifying Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 4 hooks.
       Fig 31: Identifying Hooks

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 4 clips.
       Fig 32: Identifying Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 3 hog rings.
       Fig 33: Identifying Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 4 clips.
       Fig 34: Identifying Clips & Hooks

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disengage each hook and remove the separate type front seat cushion cover with pad.
22. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. Remove the 2 hog rings.
       Fig 35: Identifying Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 16 hog rings and the separate type front seat cushion cover from the separate type front seat cushion pad.
       Fig 36: Identifying Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY

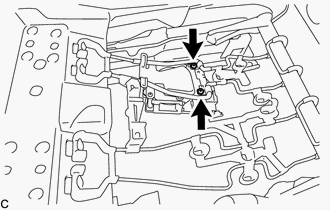

    1. Remove the 2 screws.

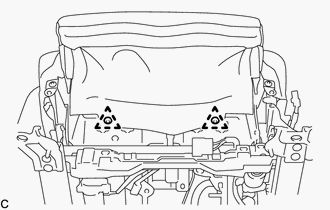

       Fig 37: Identifying Screws & Hooks

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 hooks to remove the front seatback board sub-assembly.
24. REMOVE SEATBACK CLIMATE CONTROL COVER (w/ Climate Control Seat System)

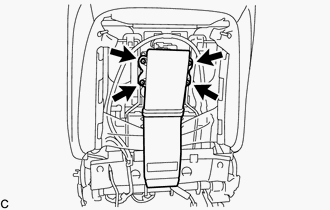

    1. Remove the 4 screws to remove the seatback climate control cover.
       Fig 38: Identifying Seatback Climate Control Cover & Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
    1. Disengage the claw and 2 clamps to separate the front seat airbag assembly wire harness.
       Fig 39: Identifying Claw & Clamps

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 hog rings.
       Fig 40: Identifying Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage each hook.

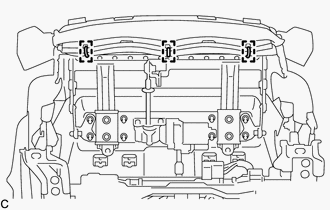

       Fig 41: Identifying Hooks

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 hog rings.
       Fig 42: Identifying Hog Rings

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 nuts and the 3 brackets.
       Fig 43: Identifying Nuts & Brackets

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

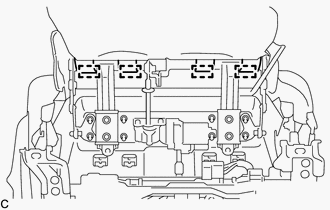

       TEXT IN ILLUSTRATION



       *1

       Bracket

    6. Disengage each claw and remove the 2 front seat headrest supports.

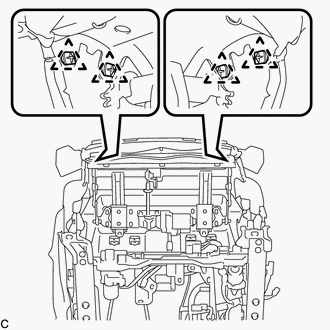

       Fig 44: Identifying Claws & Headrest Supports

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the separate type front seatback cover with pad.
26. REMOVE FRONT SEAT AIRBAG ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 12
27. REMOVE SEPARATE TYPE FRONT SEATBACK COVER
    1. Remove the 14 hog rings and separate type front seatback cover from the separate type front seatback pad.
       Fig 45: Identifying Hog Rings For Front Seatback Heater (Separate Type Front Seatback Cover)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

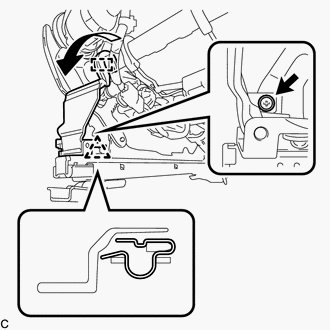

28. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH

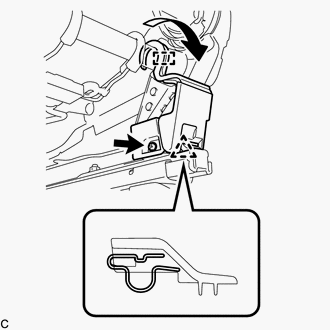

    1. Remove the screw.
       Fig 46: Identifying Screw, Clip & Hook

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the hook as shown in the illustration.
    3. Disengage the clip to remove the front seat lower cushion shield LH.
29. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH
    1. Remove the screw.
       Fig 47: Identifying Front Seat Cushion Edge Protector RH Guides

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the hook as shown in the illustration.
    3. Disengage the clip to remove the front seat lower cushion shield RH.
30. REMOVE FRONT SEAT CUSHION EDGE PROTECTOR LH
    1. Disengage the 2 guides to remove the front seat cushion edge protector LH.
       Fig 48: Identifying Front Seat Cushion Edge Protector LH Guides

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
31. REMOVE FRONT SEAT CUSHION EDGE PROTECTOR RH

    HINT:

    Perform the same procedure as for the LH side.

32. REMOVE LIMIT SWITCH ASSEMBLY (for Front Passenger Side with Occupant Classification System)

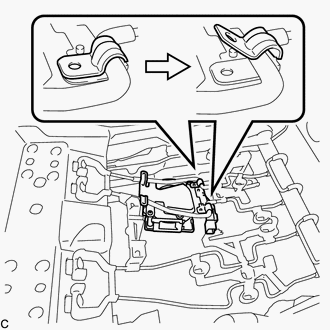

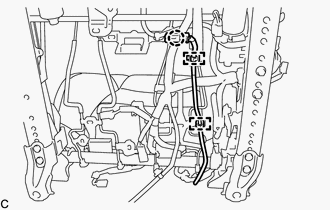

    1. Disengage the 2 clamps.
       Fig 49: Identifying Clamps

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
       Fig 50: Identifying Connector & Clamps

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

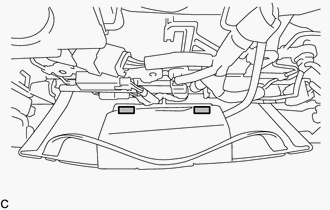

    3. Disengage the 2 clamps.
    4. Remove the screw and limit switch assembly.
       Fig 51: Identifying Screw & Limit Switch Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
33. REMOVE RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the screw.
       Fig 52: Identifying Screw

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

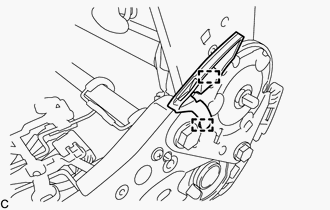

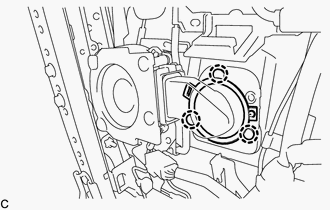

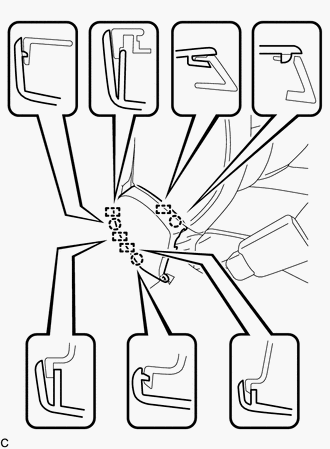

    2. Disengage the 3 claws to remove the reclining adjuster inside cover LH.
       Fig 53: Identifying Reclining Adjuster Inside Cover LH & Claws.

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
34. REMOVE RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Perform the same procedure as for the LH side.

35. REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)

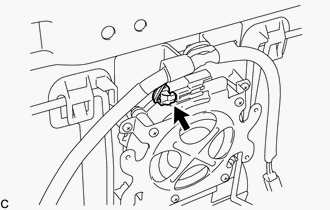

    1. Disconnect the connector.

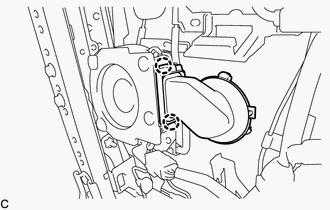

       Fig 54: Identifying Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

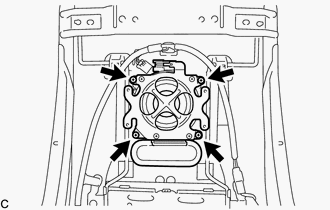

    2. Remove the 4 screws and seatback climate control blower.
       Fig 55: Identifying Screws & Seatback Climate Control Blower

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
36. REMOVE SEATBACK CLIMATE CONTROL DUCT (w/ Climate Control Seat System)
    1. Disengage the 2 claws to remove the seatback climate control duct from the seatback climate control blower.
       Fig 56: Identifying Seatback Climate Control Duct & Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
37. REMOVE SEAT CUSHION CLIMATE CONTROL DUCT (w/ Climate Control Seat System)
    1. Disengage the 2 claws to remove the seat cushion climate control duct from the seat climate control blower.
       Fig 57: Identifying Claws & Seat Climate Control Blower

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
38. REMOVE SEAT CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
    1. Disconnect the connector.
       Fig 58: Identifying Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
       Fig 59: Identifying Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Open the 2 brackets as shown in the illustration and remove the seat climate control blower from the front seat cushion spring sub-assembly.
       Fig 60: Identifying Brackets

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
39. REMOVE OCCUPANT DETECTION ECU (for Front Passenger Side with Occupant Classification System)  . Refer to REMOVAL [08/2013 - ] - Step 3
40. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)
    1. Disengage the claw to remove the seat heater control sub-assembly.
       Fig 61: Identifying Seat Heater Control Sub-Assembly Claw

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
41. REMOVE FRONT SEAT WIRE

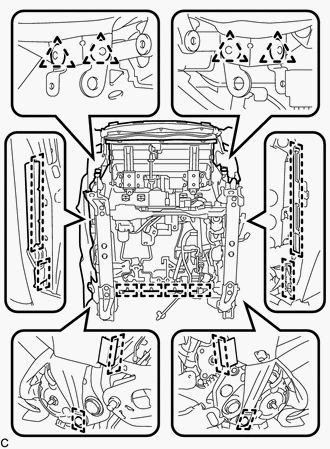

    1. Disconnect each connector and disengage each clamp to remove the front seat wire.
42. REMOVE FRONT NO. 2 SEAT WIRE

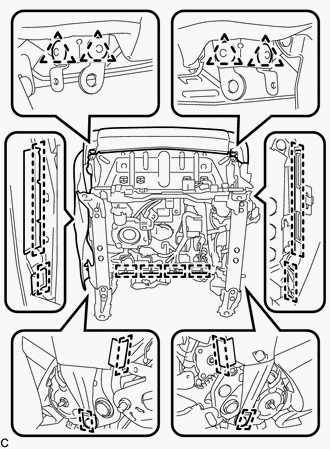

    1. Disconnect each connector and disengage each clamp to remove the front No. 2 seat wire.
43. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY
    1. Disengage each hook to remove the front seat cushion spring sub-assembly.

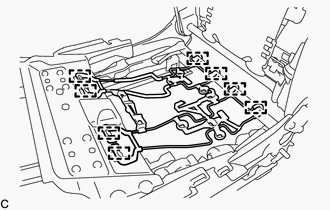

       Fig 62: Identifying Hooks & Cushion Spring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
44. REMOVE FRONT SEATBACK EDGE PROTECTOR  See step  15
45. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY  See step  16
46. REMOVE FRONT SEATBACK HOOK  See step  17
47. REMOVE FRONT SEATBACK FRAME SUB-ASSEMBLY
    1. Remove the 4 bolts

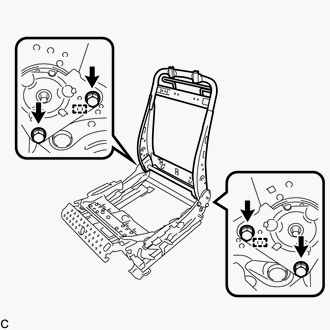

       Fig 63: Identifying Bolts & Guides

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the front seatback frame sub-assembly from the front seat adjuster assembly.
