DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

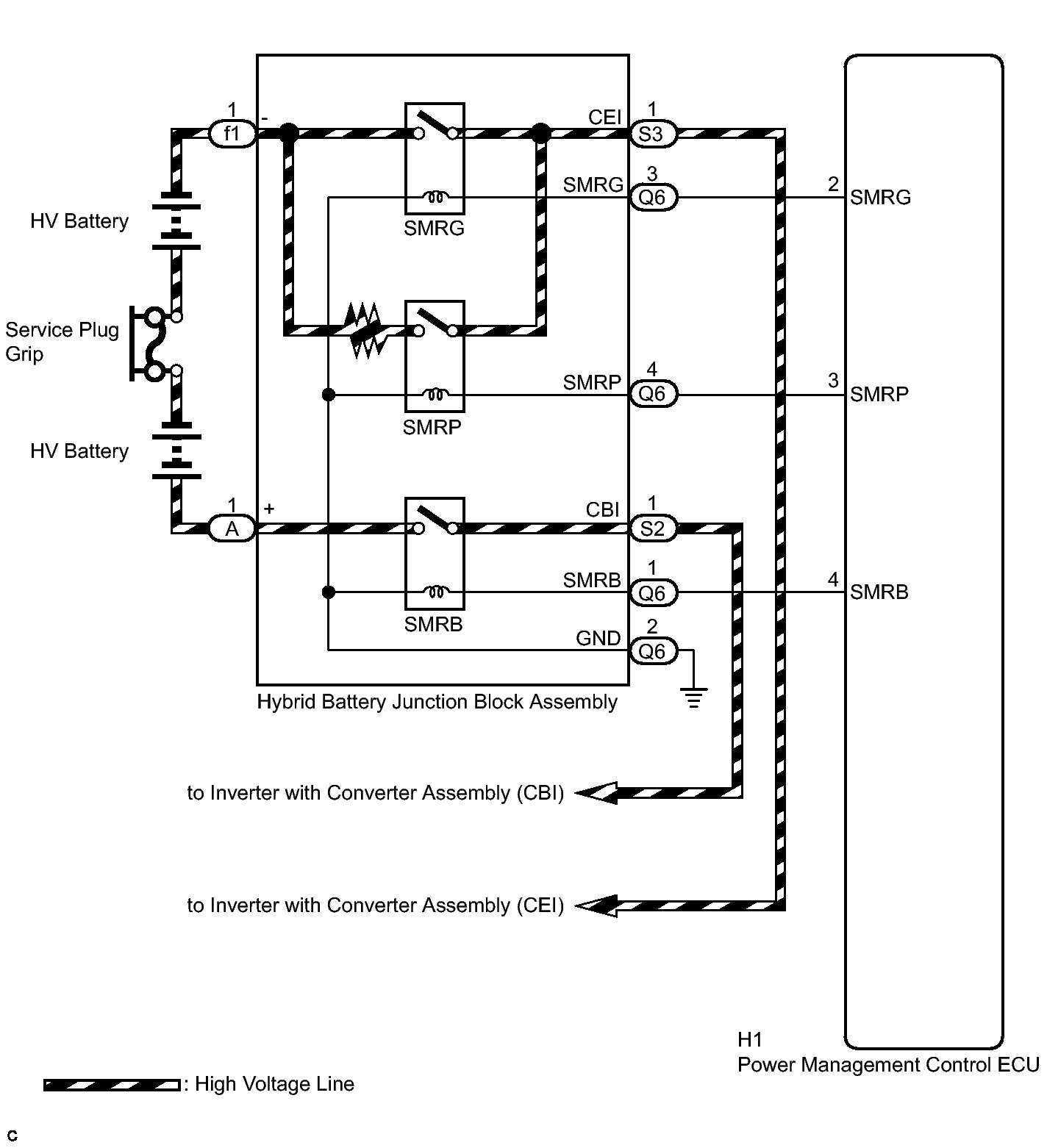

Fig 1: Hybrid Battery Precharge Contactor Control Circuit Wiring Diagram (1 Of 2)

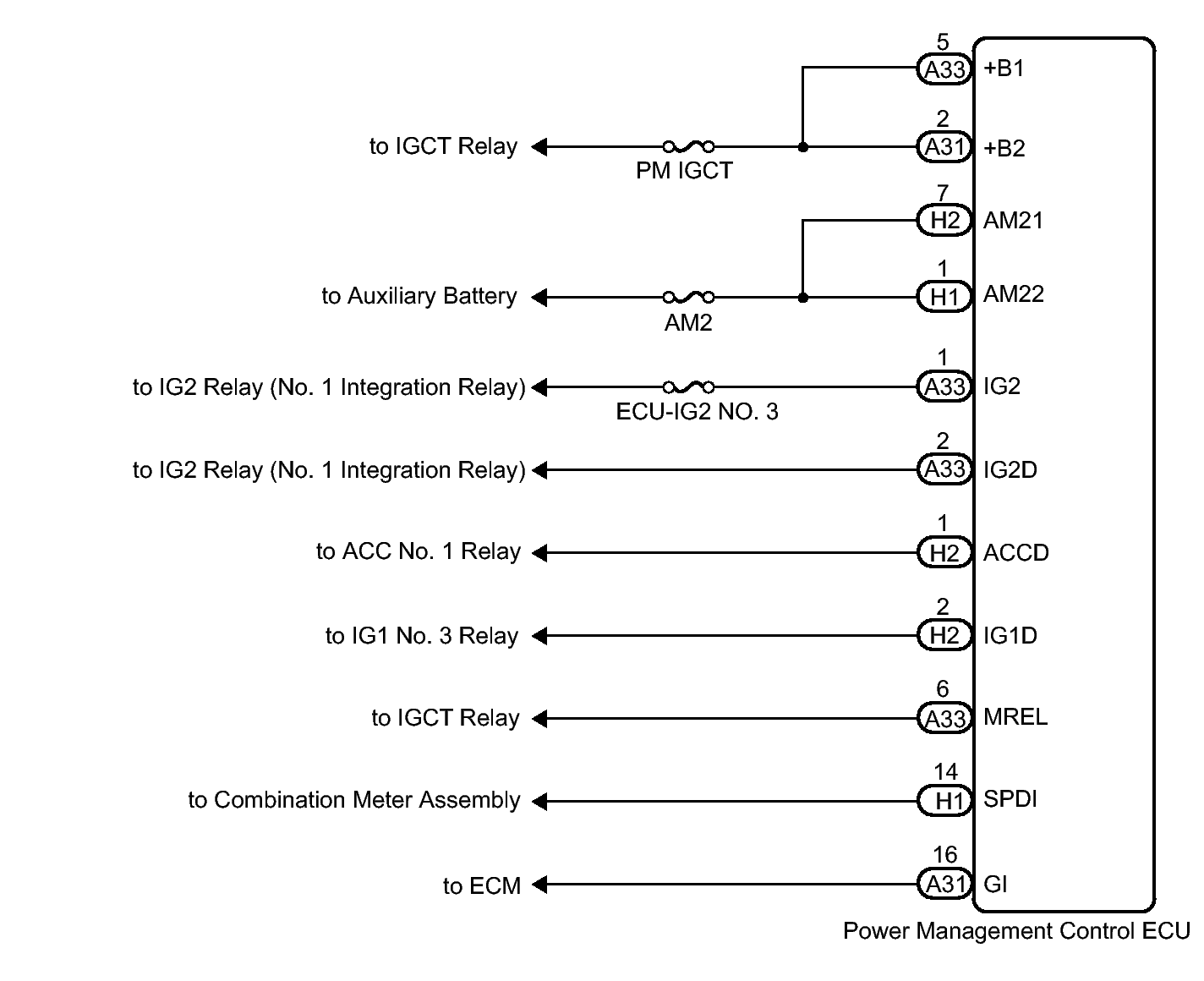

Fig 2: Hybrid Battery Precharge Contactor Control Circuit Wiring Diagram (2 Of 2)
