DTC P0A0F-238: Engine Failed to Start [08/2013 - ]: Description

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

If the power management control ECU detects that the engine or transaxle gear has seized, the power management control ECU will perform fail-safe control. Also, if a substance or object is preventing the engine or transaxle internal components from rotating, the power management control ECU will perform fail-safe control.

DTC No. INF Code DTC Detection Condition Trouble Area
P0A0F 238 Engine does not start even though it is being cranked (transaxle input malfunction [engine system])
  • Hybrid vehicle transaxle assembly
  • Transmission input damper assembly
  • Power management control ECU
  • Engine

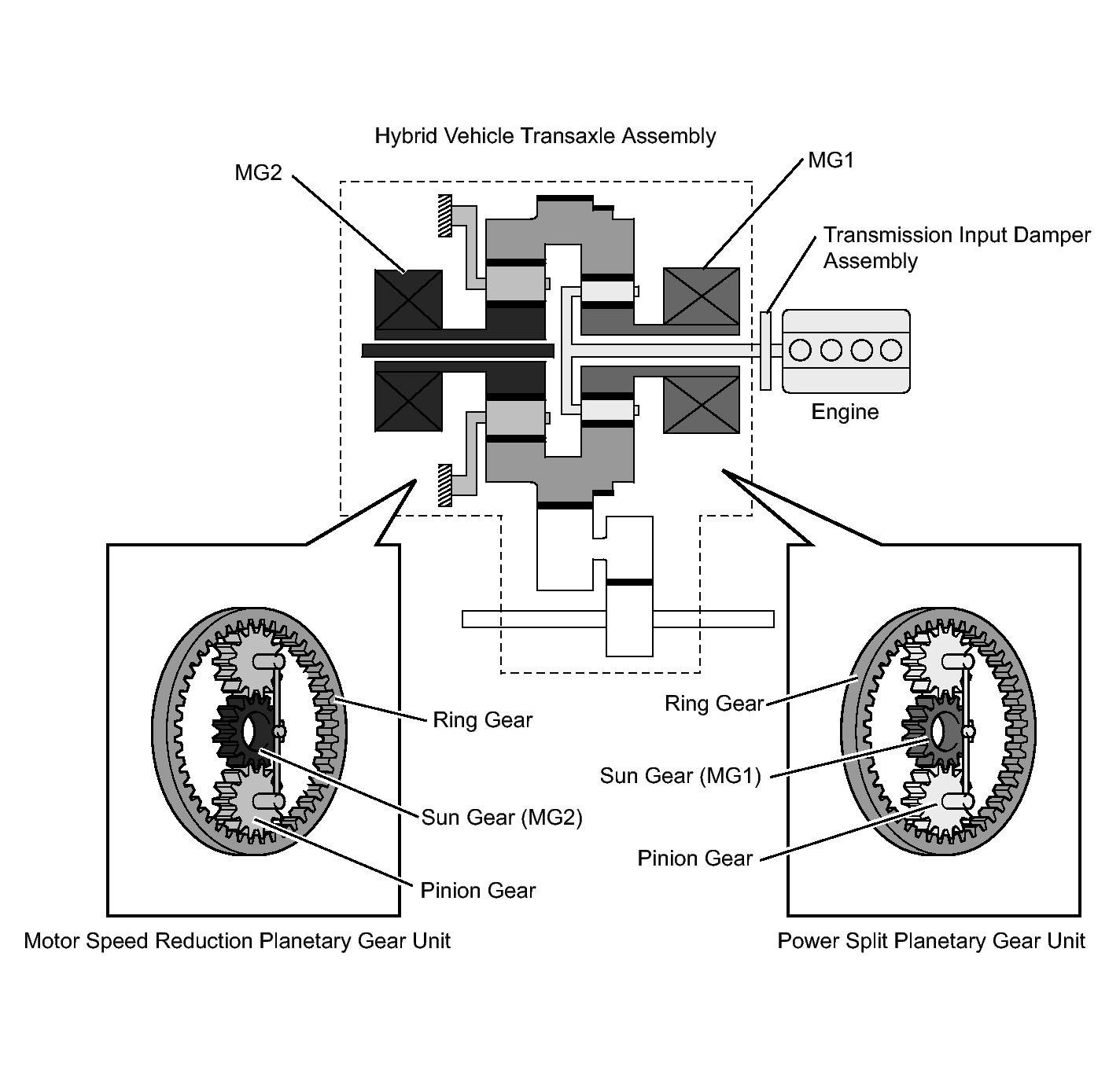

Fig 1: Hybrid Transaxle Diagram
GTY379335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
