Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 REAR BUMPER PLATE

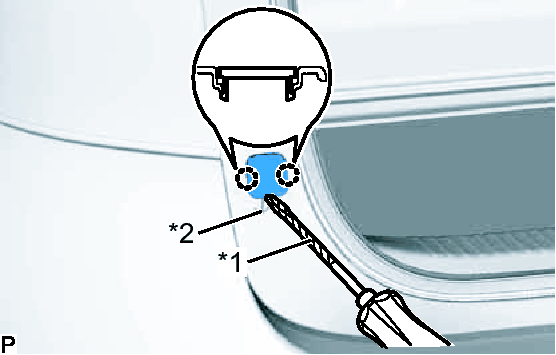

Using a screwdriver with the tip wrapped with protective tape, disengage the 2 claws.

Fig 1: Removing No. 1 Rear Bumper Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Protective Tape
*2	Hook

Disengage the hook and remove the No. 1 rear bumper plate.
HINT:

Use the same procedure for the RH side and LH side.

REMOVE REAR BUMPER ASSEMBLY

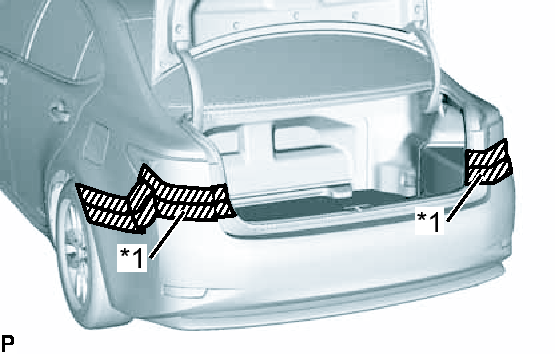

1. Put protective tape around the rear bumper assembly as shown in the illustration.

  Fig 2: Identifying Protective Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protective Tape

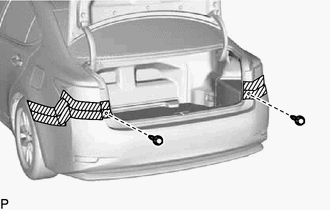

2. Remove the 2 screws.

  Fig 3: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

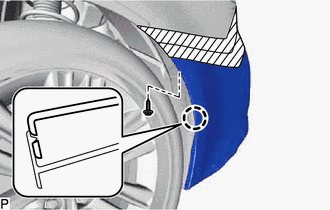

3. Remove the screw.

  Fig 4: Identifying Screw And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the RH side and LH side.
4. Disengage the claw.
  HINT:

  Use the same procedure for the RH side and LH side.

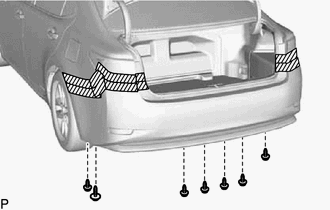

5. Remove the 7 screws.

  Fig 5: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

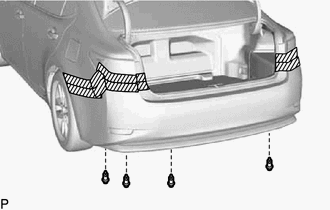

6. Remove the 4 clips.

  Fig 6: Identifying Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

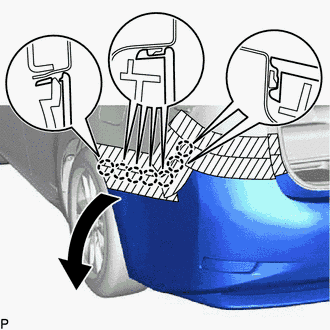

7. Disengage the 7 claws as shown in the illustration.

  Fig 7: Identifying Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the RH side and LH side.

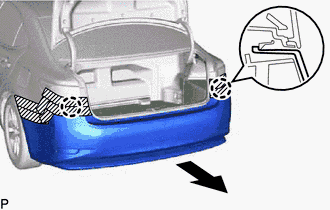

8. Disengage the 2 claws as shown in the illustration.

  Fig 8: Identifying Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. w/ Intuitive Parking Assist System:
  1. Disconnect each connector.
10. Remove the rear bumper assembly.
