Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.

REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG . Refer to DISASSEMBLY [08/2013 - ] - Step 4
REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side) . Refer to DISASSEMBLY [08/2013 - ] - Step 5
REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side) . Refer to DISASSEMBLY [08/2013 - ] - Step 6
REMOVE DOOR PULL HANDLE COVER . Refer to DISASSEMBLY [08/2013 - ] - Step 7
REMOVE COURTESY LIGHT ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 1
REMOVE FRONT DOOR NO. 1 STIFFENER CUSHION . Refer to DISASSEMBLY [08/2013 - ] - Step 9
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY . Refer to DISASSEMBLY [08/2013 - ] - Step 10
REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP . Refer to DISASSEMBLY [08/2013 - ] - Step 11
REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH . Refer to DISASSEMBLY [08/2013 - ] - Step 19
REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER
1. Remove the nut and front door front lower frame upper cover.

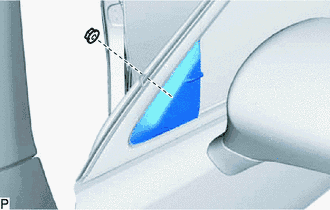

  Fig 1: Identifying Front Door Front Lower Frame Upper Cover Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
