Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HEATED OXYGEN SENSOR . Refer to REMOVAL [08/2013 - ] - Step 1
REMOVE TAIL EXHAUST PIPE ASSEMBLY
1. Remove the 2 bolts and 2 compression springs.

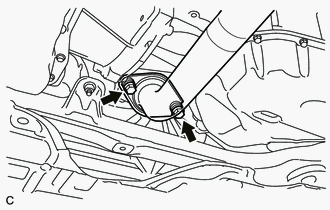

  Fig 1: Locating Compression Springs & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the tail exhaust pipe assembly from the 3 exhaust pipe supports.
3. Remove the gasket from the center exhaust pipe assembly.
REMOVE CENTER EXHAUST PIPE ASSEMBLY
1. Remove the 2 nuts.

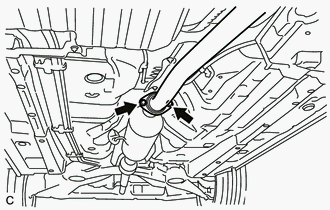

  Fig 2: Locating Center Exhaust Pipe Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the center exhaust pipe assembly from the exhaust pipe support.
3. Remove the gasket from the front exhaust pipe assembly.
REMOVE FRONT EXHAUST PIPE ASSEMBLY
1. Remove the 2 bolts and 2 compression springs.

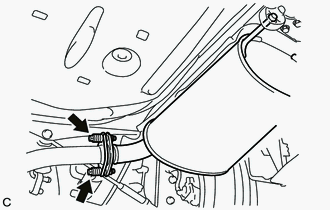

  Fig 3: Locating Front Exhaust Pipe Assembly Bolts And Compression Springs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the front exhaust pipe assembly from the exhaust pipe support.
3. Remove the gasket from the exhaust manifold converter sub-assembly.
