DTC P0351: Ignition Coil "A" Primary / Secondary Circuit; DTC P0352: Ignition Coil "B" Primary / Secondary Circuit; DTC P0353: Ignition Coil "C" Primary / Secondary Circuit; DTC P0354: Ignition Coil "D" Primary / Secondary Circuit [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

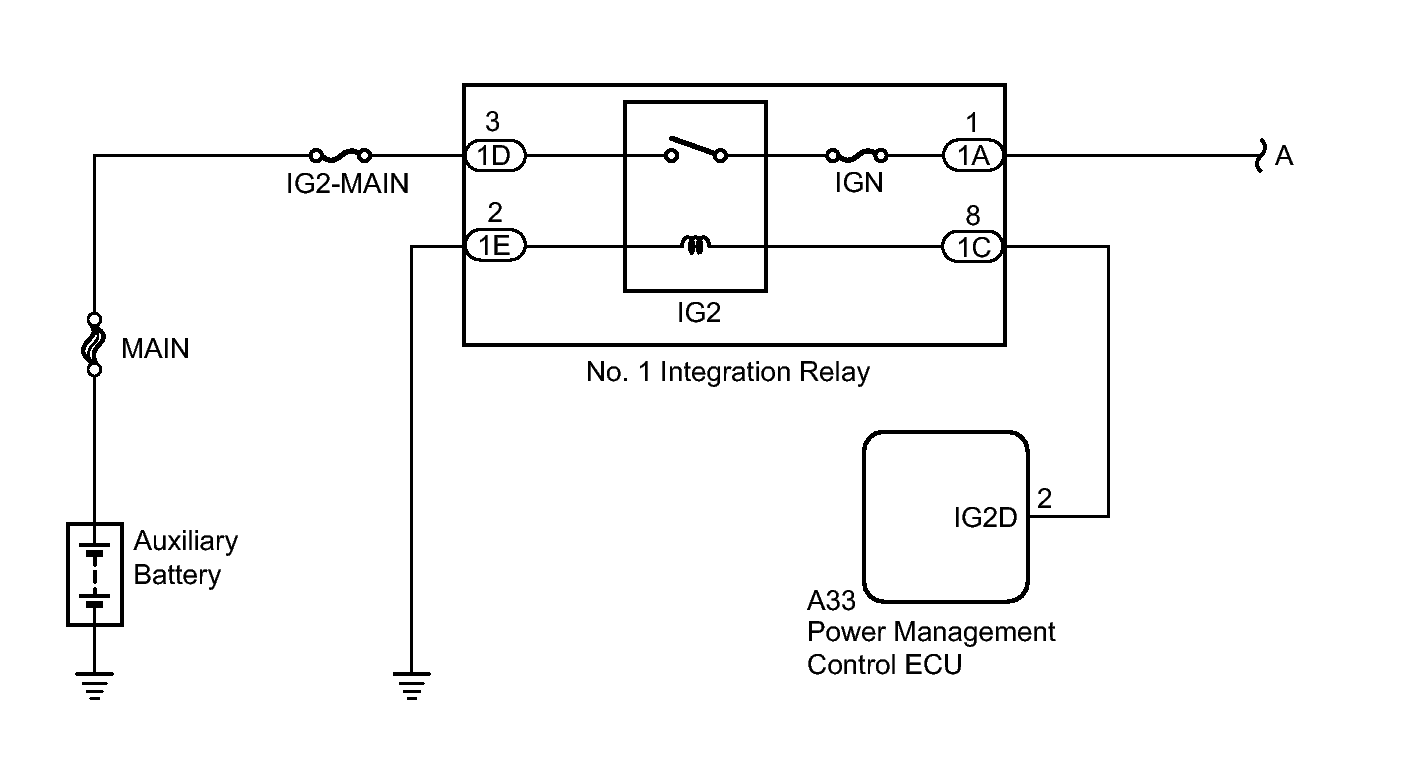

Fig 1: Ignition Coil "A" "B", "C" & "D" Primary / Secondary Circuit Diagram (1 Of 2)

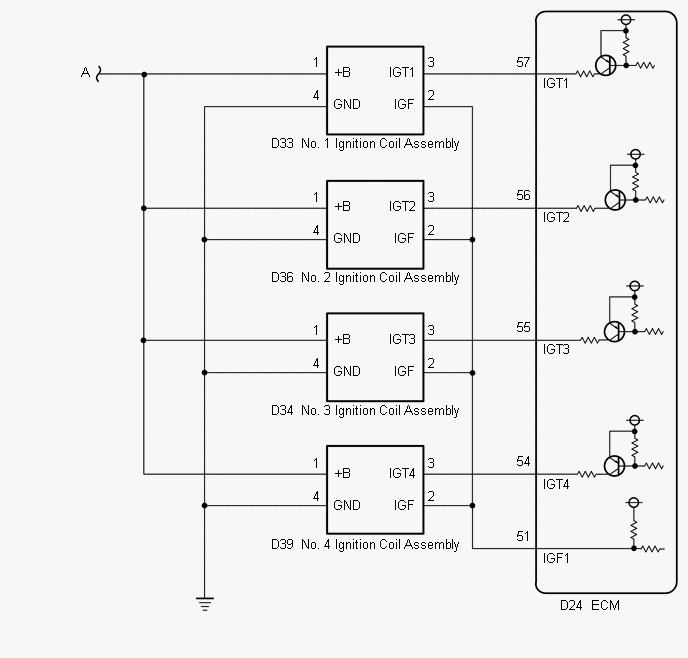

Fig 2: Ignition Coil "A" "B", "C" & "D" Primary / Secondary Circuit Diagram (2 Of 2)
