Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM  See step  1
  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [08/2013 - ]

  3. REMOVE RADIATOR ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  4. CHECK TERMINAL VOLTAGE
    1. Remove the connector cover assembly. Refer to REMOVAL [08/2013 - ] - Step 4 .
    2. Check the terminal voltage. Refer to REMOVAL [08/2013 - ] - Step 5 .
    3. Install the connector cover assembly. Refer to REMOVAL [08/2013 - ] - Step 6 .
  5. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
    1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor with motor assembly.
      Fig 1: Identifying Bolt & No. 1 Cooler Refrigerant Discharge Hose
      GTY402191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  6. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE
    1. Remove the bolt and disconnect the No. 1 cooler refrigerant suction hose from the compressor with motor assembly.
      Fig 2: Identifying Bolt & No. 1 Cooler Refrigerant Suction Hose
      GTY417378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 1 cooler refrigerant suction hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  7. REMOVE COMPRESSOR WITH MOTOR ASSEMBLY
    1. Using a screwdriver, slide the green-colored lock of the connector <A> in the direction indicated by the arrow in the illustration to release it and disconnect the connector.

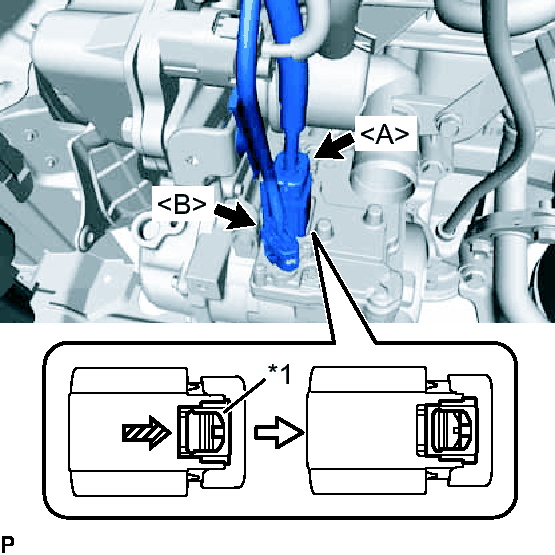

      Fig 3: Identifying Green-Colored Lock Of Connector
      GTY408516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Green-colored Lock
      WARNING:

      Make sure to wear insulating gloves.

      NOTE:

      Insulate the removed terminals and connector with insulating tape.

    2. Disconnect the connector <B>.
    3. Remove the bolt and 2 nuts and compressor with motor assembly.

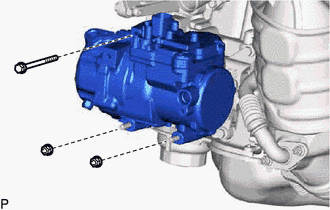

      Fig 4: Identifying Compressor Bolt & Nuts
      GTY402180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using an E8 "TORX" socket, remove the 2 stud bolts.

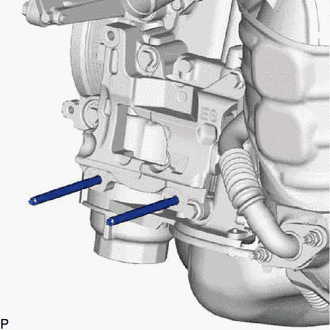

      Fig 5: Identifying Stud Bolts
      GTY402183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
