Overview - Dual Clutch Transmission Mount, Version 1

WARNING: This page is about a different car, the 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

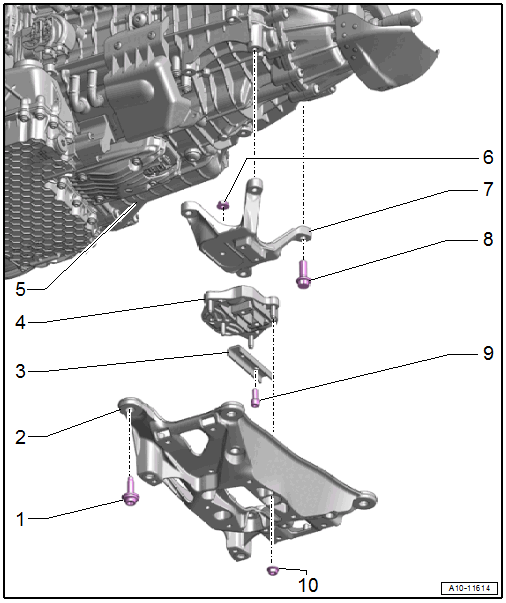

Fig 1: Exploded View Of Subframe Mount With Components
GWWA10-11614Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • Tightening specifications. Refer to the appropriate Service Information .
  2. Tunnel Crossmember
    • Removing and installing. Refer to the appropriate Service Information .
  3. Stop
    • For the transmission mount
  4. Transmission Mount
  5. Transmission
  6. Nut
    • Tightening specifications. Refer to the appropriate Service Information .
    • Only remove when the transmission mount must be separated from the transmission support
  7. Transmission Support
  8. Bolt
    • Tightening specifications. Refer to the appropriate Service Information .
  9. Bolt
    • Tightening specifications. Refer to the appropriate Service Information .
    • Only remove when the transmission mount must be separated from the transmission support
  10. Nut
    • Tightening specifications. Refer to the appropriate Service Information .
    • Only remove when the transmission mount must be separated from the transmission support
