Height, Adjusting Using Spring Element

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Adjustment Gauge :3371

Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

Procedure

Front bumper installed.

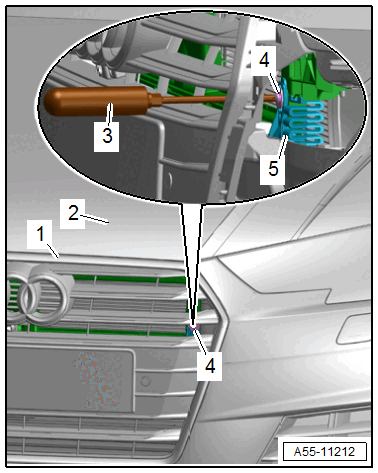

The spring element -5- must be tensioned.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -4- using a screwdriver -3-.

-- Adjust the distance between the radiator grille -1- and the hood -2-.

-- Tighten the bolt.

Tightening Specifications

Refer to OVERVIEW - LOCK CARRIER
