Overview - Horn

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

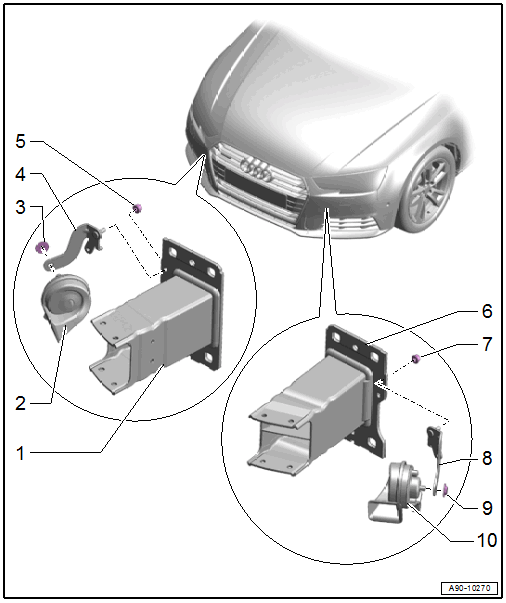

Fig 1: Exploded View Of Horn

Courtesy of AUDI OF AMERICA, LLC

Right Mount
- For impact member
Low Tone Horn -H7-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Nut
- 11 Nm
Bracket
- For the right horn
- Removing and installing. Refer to HORN BRACKET, REMOVING AND INSTALLING .
Nut
- 8 Nm
Left Mount
- For impact member
Nut
- 8 Nm
Bracket
- For the left horn
- Removing and installing. Refer to HORN BRACKET, REMOVING AND INSTALLING .
Nut
- 11 Nm
High Tone Horn -H2-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
