Overview - Seat Pan

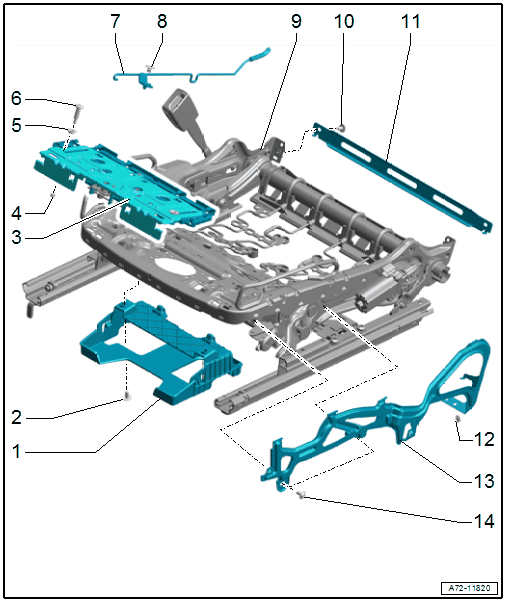

Fig 1: Exploded View Of Seat Pan

Courtesy of AUDI OF AMERICA, LLC

Owner's Manual Bracket
- Front passenger side: storage compartment/fire extinguisher
- Removing and installing. Refer to OWNER'S MANUAL, FIRE EXTINGUISHER AND STORAGE COMPARTMENT BRACKET, REMOVING AND INSTALLING .
Bolt
- 6.5 Nm
- Quantity: 2
Seat Depth Adjuster
- Only for Super Sport seat
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
Nut
- Replace after removing
- Quantity: 4
Spacer
- Quantity: 2
Bolt
- 6.5 Nm
- Replace after removing
- Quantity: 4
- Use locking fluid when installing the bolt. Refer to the Parts Information for the locking fluid.
Upholstery Wire
- Quantity: 2
Expanding Clip
Seat Pan
- Allocation. Refer to the Parts Information.
Bolt
- 6.5 Nm
- Quantity: 2
- Child seat anchor tightening specification. Refer to -item 4- Bolt .
Cross Bar
- Front passenger side: child seat anchor, equipment level
Expanding Rivet
Bracket
- For seat side trim on side sill side
- Removing and installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
Bolt
- 6.5 Nm
- Quantity: 2
