Steering Column Switch Module, Removing And Installing: Removing
-- Place the front wheels in a straight-ahead position - steering wheel neutral position.
-- Adjust the steering wheel downward and to the rear as far as possible. Use the entire adjustment range of the steering column adjustment for this.
-- Remove the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
-- Remove the lower steering column trim panel. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
WARNING:
Risk of destroying electronic components with static discharge.
- Before disconnecting the connector, discharge static electricity from your body by touching a grounded vehicle component such as the door striker pin.

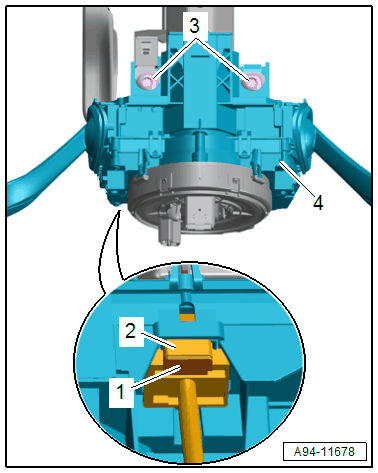

-- Remove the connector lock -1-, press it down and disconnect the connector -2-.
-- Remove the bolts -3- and remove the steering column switch module -4-.
