Steering Column Switch Module, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

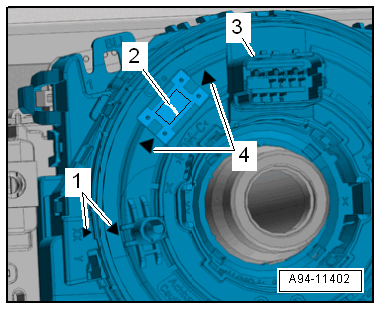

-- The following must be checked on the steering column electronics control module -3- before sliding on the steering column switch module:

• The "arrows" -1- must align.
• The spiral spring -2- must be seen in the window between the "arrows" -4-.
