Overview - Steering Column Switch Module

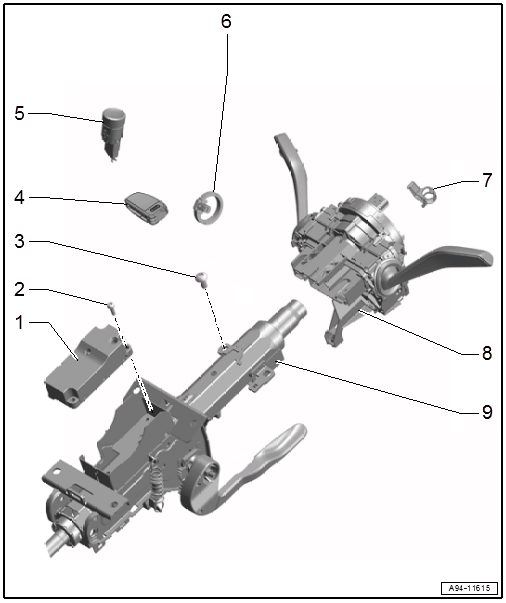

Fig 1: Exploded View Of Steering Column Switch Module

Courtesy of AUDI OF AMERICA, LLC

1. Electronic Steering Column Lock Control Module -J764-
   • Removing and installing. Refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE -J764-, REMOVING AND INSTALLING .
2. Bolt
   • Tightening specification. Refer to OVERVIEW - STEERING COLUMN .
   • Quantity: 3
3. Bolt
   • 10 Nm
   • Quantity: 2
4. Ignition Key
5. Access/Start Authorization Button -E408-
   • Component location overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN CENTER CONSOLE .
6. Anti-Theft Immobilizer Reader Coil -D2-
   • Removing and installing. Refer to ANTI-THEFT IMMOBILIZER READER COIL, REMOVING AND INSTALLING .
7. Transportation Protection
   • Remove before installing the steering wheel
8. Steering Column Switch Module
   • The following components are integrated in the steering column switch module:
     • Turn Signal Switch -E2-
     • Windshield Wiper Intermittent Mode Switch -E22-
     • Cruise Control Switch -E45-
     • Steering Column Electronics Control Module -J527-
     • Airbag Spiral Spring/Return Spring with Slip Ring -F138-
   • The components cannot be replaced separately if faulty.
   • Removing and installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .
9. Steering Column
