Headlamp Range Control Module, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

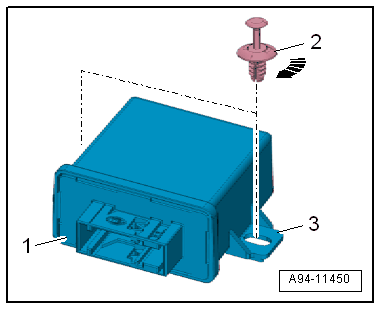

-- Insert the expanding clip -2- into the opening -3- on the control module -1- as shown and turn 90° to lock it in direction of -arrow-.
