Lower Control Arm Rear Bonded Rubber Bushing, Replacing

Special tools and workshop equipment required

• Press Plate:VW401
• Press Piece - Rod:VW411
• Press Piece - Multiple Use:VW412
• Bearing Installer - Ball Joint/Bushing/Bearing - Sleeve:VW459/2  from the Bearing Installer - Ball Joint/Bushing/Bearing:VW459
• Bearing Installer - Wheel Bearing:3345
• Bearing Installer - Multiple Use:3348
• Grease:G 052 150 A2  . Refer to the Parts Information.

Bonded Rubber Bushing, Pressing Out

Courtesy of AUDI OF AMERICA, LLC

• Control arm is removed. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .

-- Press out the bonded rubber bushings as shown.

1. :VW411
2. :3348
3. Control arm
4. :3345
5. :VW401

Bonded Rubber Bushing, Pressing On

Courtesy of AUDI OF AMERICA, LLC

-- Note the installation position of the bonded rubber bushing. Refer to Figure.

-- Install the bonded rubber bushing as shown.

1. :VW412
2. :VW459/2  , the inner offset in the sleeve -arrow- points downward
3. Control arm
4. :3345
5. :VW401

Applies to Rear Bonded Rubber Bushing Version 1

Courtesy of AUDI OF AMERICA, LLC

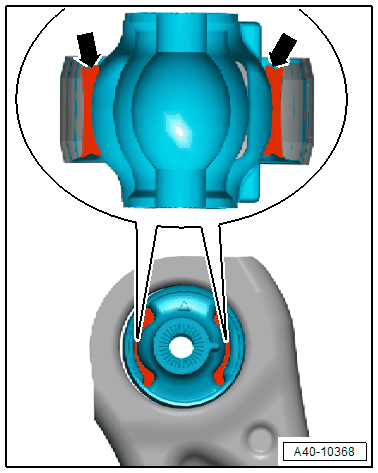

-- Evenly grease the "kidneys" -arrows- of the bonded rubber bushing from above 0.1 g Grease :G 052 150 A2  using a paint brush.

Applies to All

-- Install the control arm. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .
