Front Lower Control Arm Bonded Rubber Bushing, Replacing

Special tools and workshop equipment required

• Press Plate:VW402
• Press Piece - Rod:VW411
• Press Piece - Multiple Use:VW412
• Wishbone Rubber Mount Assembly Tool:T10219

Bonded Rubber Bushing, Pressing Out

Courtesy of AUDI OF AMERICA, LLC

• Control arm is removed. Refer to LOWER CONTROL ARM, REMOVING AND INSTALLING .

-- Press out the bonded rubber bushings as shown.

1. :VW411
2. :T10219/1  (The opening in the pipe is down and faces the control arm)
3. :VW402

Bonded Rubber Bushing, Pressing On

Courtesy of AUDI OF AMERICA, LLC

-- Note the installation position. Refer to Figure.

-- Coat the outside of the bonded rubber bushing with Installation Lubricant (thinned with water in 1:20 ratio). Refer to the Parts Information.

-- Place bonded rubber bushing on at an angle (in direction of control arm), when doing this the lip must slip into hole.

1. :T10219/2
2. :T10219/1
3. :VW402

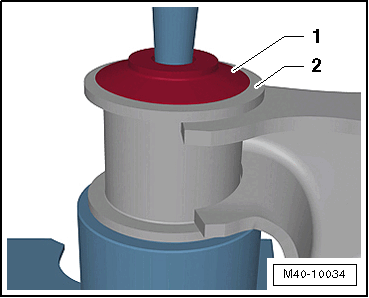

-- Install the bonded rubber bushing until the core -1- and the control arm hole -2- are at the same height.

-- Press the bushing back slightly in the control arm.

Courtesy of AUDI OF AMERICA, LLC

1. :VW412
2. :T10219/1
3. :VW402

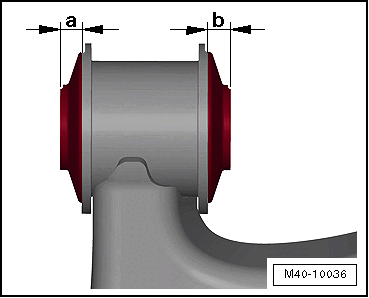

• Dimensions -a and b- must be identical.
  Fig 2: Identifying Dimensions

  Courtesy of AUDI OF AMERICA, LLC
