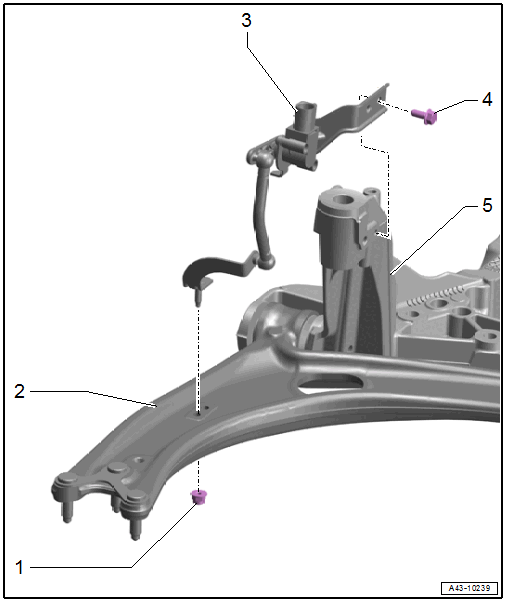

Overview - Front Level Control System Sensor
- Nut
- 8 Nm
- Replace after removing
- Self-locking
- Control Arm
- Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-, Right Front Level Control Sensor -G289-
- Complete with coupling rod and upper and lower retaining plate
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- After installing on vehicles with electronic damping (Audi magnetic ride), perform the "Readapt control position" function using the Vehicle Diagnostic Tester.
- If the control position was reprogrammed on a vehicle with lane assist, then the driver assistance systems front camera must be calibrated. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .
- Adjust the headlamps to the basic setting. Refer to HEADLAMP, ADJUSTING .
- Bolt
- 8 Nm
- Subframe
