Overview - Rear Child Seat Anchors

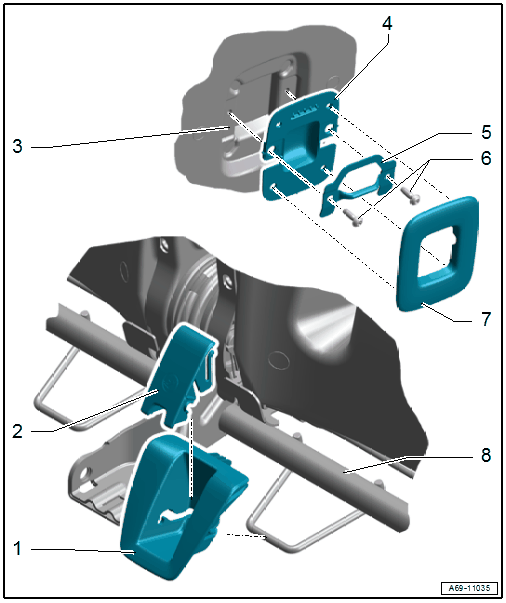

Fig 1: Exploded View Of Rear Child Seat Anchors

Courtesy of AUDI OF AMERICA, LLC

Guide
- For the child seat anchor
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .
- Must be secure on the anchor
- Quantity: 4
Cover
- For the child seat anchor
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING, REAR SEAT .
- Must be secure on the anchor
- Quantity: 4
Rear Seat Backrest
Cover
- For the child seat anchor
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Can only be installed in one position
- Quantity: 2
Child Seat Anchor
- Quantity: 2
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, REAR SEAT BACKREST .
Bolts
- 6.5 Nm
Cover
- Replace the damaged cover.
- For the child seat anchor
- Removing and installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING, REAR SEAT BACKREST .
- Press on until it engages audibly
- Can only be installed in one position
- Quantity: 2
Backrest Frame
- Child seat anchor is welded to the backrest frame
